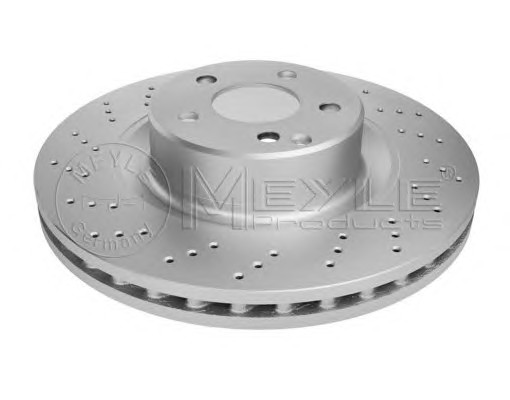

MERCEDES BENZ Brake Disc 220 421 11 12

Location:Front wheel Total height:76 mm Outer diameter:345 mm Center hole diameter:67 mm Pitch diameter:112 mm Disc thickness:32 mm Minimum disc thickness:30 mm Number of holes:5 Solid or ventilated disk:P/V Weight:12.6 kg

SUZUKI/GEO Brake Disc 55211-56B00

Location:Front wheel Total height:46.1 mm Outer diameter:287 mm Center hole diameter:107 mm Pitch diameter:140 mm Disc thickness:17 mm Minimum disc thickness:15 mm Number of holes:5 Solid or ventilated disk:Ventilated disk Weight:4.6 kg

SKODA/VOLKSWAGEN/VW (SVW) Brake Disc 4B0 615 301B

Location:Front wheel Total height:46.5 mm Outer diameter:288 mm Center hole diameter:68 mm Pitch diameter:112 mm Disc thickness:25 mm Minimum disc thickness:23 mm Number of holes:10 Solid or ventilated disk:Ventilated disk Weight:7.5 kg

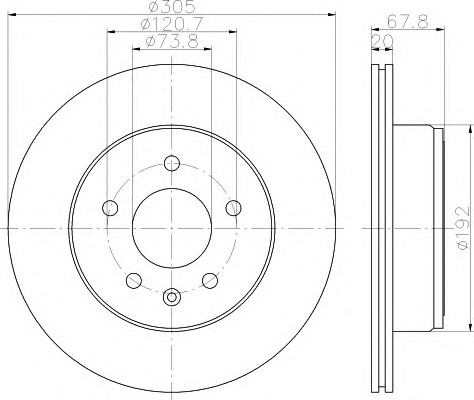

JAGUAR Brake Disc JLM 20342

Location:Rear wheel Total height:67.9 mm Outer diameter:305 mm Center hole diameter:73.8 mm Pitch diameter:120.7 mm Disc thickness:20 mm Minimum disc thickness:18.5 mm Number of holes:5 Solid or ventilated disk:Ventilated disk Weight:7 kg

KIA Brake Disc MDX74-33-251

Location:Front wheel Total height:45 mm Outer diameter:235 mm Center hole diameter:55 mm Pitch diameter:100 mm Disc thickness:22 mm Minimum disc thickness:20 mm Number of holes:4 Solid or ventilated disk:Ventilated disk Weight:4.3 kg

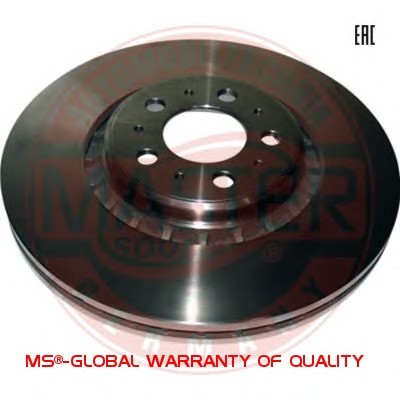

VOLVO Brake Disc 30657301

Location:Front wheel Total height:51 mm Outer diameter:336 mm Center hole diameter:68 mm Pitch diameter:108 mm Disc thickness:30 mm Minimum disc thickness:27 mm Number of holes:5 Solid or ventilated disk:Ventilated disk Weight:11.4 kg

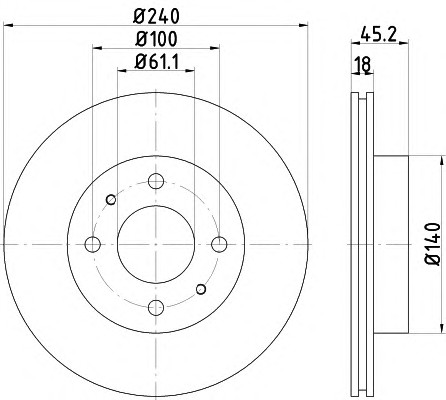

NISSAN Brake Disc 40206-60Y01

Location:Front wheel Total height:45.2 mm Outer diameter:240 mm Center hole diameter:61 mm Pitch diameter:100 mm Disc thickness:18 mm Minimum disc thickness:16 mm Number of holes:4 Solid or ventilated disk:Ventilated disk Weight:4.36 kg

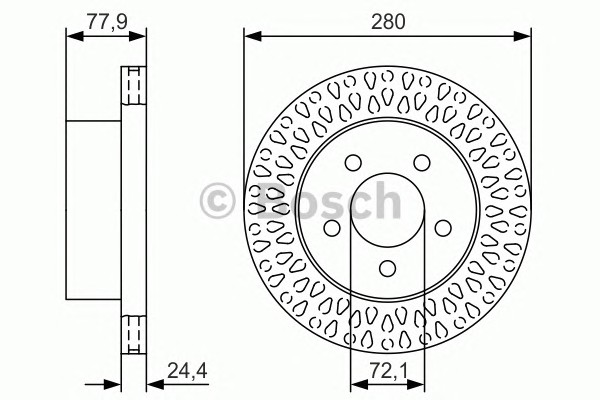

JEEP Brake Disc 5016434AA

Location:Front wheel Total height:78 mm Outer diameter:280 mm Center hole diameter:72 mm Pitch diameter:114.3 mm Disc thickness:24 mm Minimum disc thickness:22.7 mm Number of holes:5 Solid or ventilated disk:Ventilated disk Weight:6.8 kg

TOYOTA Brake Disc 43512-60090

Location:Front wheel Total height:58 mm Outer diameter:311 mm Center hole diameter:105 mm Pitch diameter:139.7 mm Disc thickness:32 mm Minimum disc thickness:30 mm Number of holes:6 Solid or ventilated disk:Ventilated disk Weight:8.2 kg

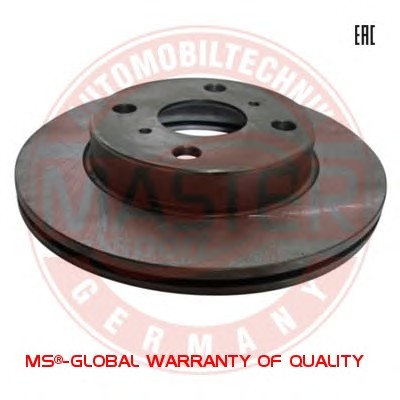

TOYOTA Brake Disc 43512-52050

Location:Front wheel Total height:43.2 mm Outer diameter:235 mm Center hole diameter:55 mm Pitch diameter:100 mm Disc thickness:17.9 mm Minimum disc thickness:16 mm Number of holes:4 Solid or ventilated disk:Ventilated disk Weight:3.7 kg

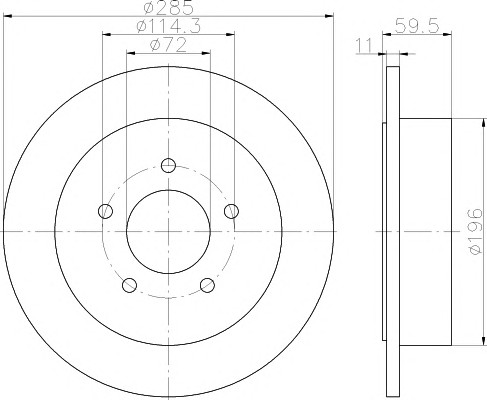

JEEP Brake Disc 52008184

Location:Rear wheel Total height:59.2 mm Outer diameter:285 mm Center hole diameter:72 mm Pitch diameter:114.3 mm Disc thickness:11 mm Minimum disc thickness:9.5 mm Number of holes:5 Solid or ventilated disk:Solid disk Weight:5.15 kg

AUDI/VOLKSWAGEN Brake Disc 8D0 615 601 D

Location:Front wheel Total height:48.1 mm Outer diameter:256 mm Center hole diameter:68 mm Pitch diameter:112 mm Disc thickness:22 mm Minimum disc thickness:20 mm Number of holes:5 Solid or ventilated disk:Ventilated disk Weight:4.8 kg

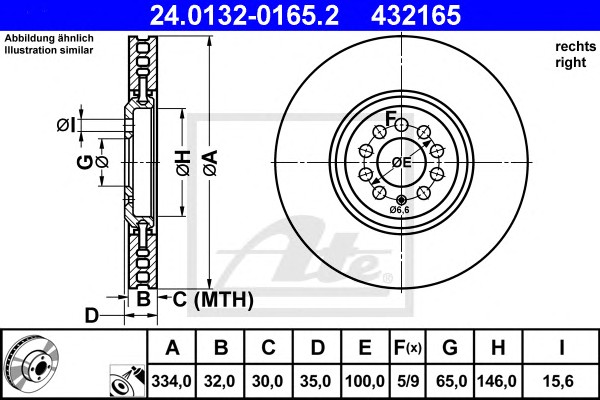

VOLKSWAGEN Brake Disc 1J0 615 302 A

Location:Front wheel, Right Total height:35.2 mm Outer diameter:334 mm Center hole diameter:65 mm Pitch diameter:100 mm Disc thickness:32 mm Minimum disc thickness:30 mm Number of holes:5 Solid or ventilated disk:Ventilated disk Weight:10.5 kg

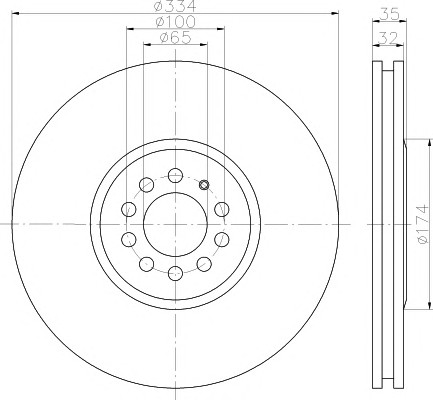

VOLKSWAGEN Brake Disc 1J0 615 301 AA

Location:Front wheel, Left Total height:35.2 mm Outer diameter:334 mm Center hole diameter:65 mm Pitch diameter:100 mm Disc thickness:32 mm Minimum disc thickness:30 mm Number of holes:5 Solid or ventilated disk:Ventilated disk Weight:10.5 kg

TOYOTA Brake Disc 43512-35210

Location:Front wheel Total height:70.2 mm Outer diameter:319 mm Center hole diameter:108 mm Pitch diameter:139.7 mm Disc thickness:22 mm Minimum disc thickness:20 mm Number of holes:6 Solid or ventilated disk:Ventilated disk Weight:6.5 kg
