Product Center

MINI Brake Disc 34 11 9 804 829

Location:Front wheel Total height:45.2 mm Outer diameter:307 mm Center hole diameter:79 mm Pitch diameter:120 mm Disc thickness:24 mm Minimum disc thickness:22.4 mm Number of holes:5 Solid or ventilated disk:Ventilated disk Weight:7.8 kg

RENAULT Brake Disc 77 01 208 848

Location:Front wheel Total height:44 mm Outer diameter:280 mm Center hole diameter:61 mm Pitch diameter:108 mm Disc thickness:24 mm Minimum disc thickness:44 mm Number of holes:5 Solid or ventilated disk:Ventilated disk Weight:7.3 kg

KIA/HYUNDAI Brake Disc 51712-07700

Location:Front wheel Total height:49 mm Outer diameter:252 mm Center hole diameter:62.2 mm Pitch diameter:100 mm Disc thickness:18 mm Minimum disc thickness:16 mm Number of holes:4 Solid or ventilated disk:Ventilated disk Weight:4.5 kg

FORD Brake Disc 1 569 253

Location:Front wheel Total height:52 mm Outer diameter:336 mm Center hole diameter:63.5 mm Pitch diameter:108 mm Disc thickness:28 mm Minimum disc thickness:26 mm Number of holes:5 Solid or ventilated disk:Ventilated disk Weight:11.5 kg

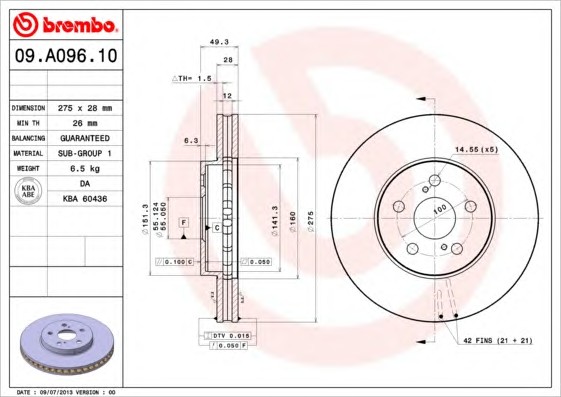

TOYOTA Brake Disc 43512-68011

Location:Front wheel Total height:49.3 mm Outer diameter:275 mm Center hole diameter:55 mm Pitch diameter:100 mm Disc thickness:28 mm Minimum disc thickness:26 mm Number of holes:5 Solid or ventilated disk:Ventilated disk Weight:6.5 kg

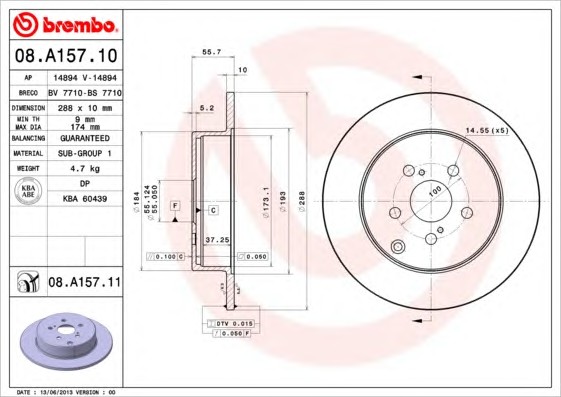

TOYOTA Brake Disc 42431-21010

Location:Rear wheel Total height:55.7 mm Outer diameter:288 mm Center hole diameter:55 mm Pitch diameter:100 mm Disc thickness:10 mm Minimum disc thickness:9 mm Number of holes:5 Solid or ventilated disk:Solid disk Weight:4.7 kg

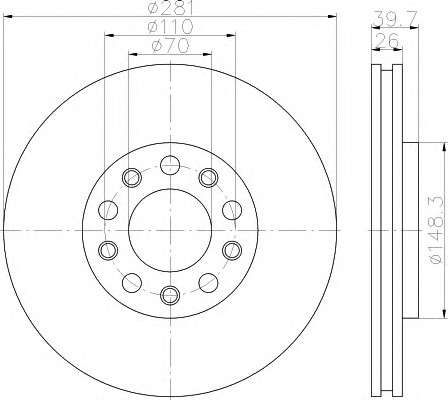

ALFA ROMEO Brake Disc 51815312

Location:Front wheel Total height:39.7 mm Outer diameter:281 mm Center hole diameter:70 mm Pitch diameter:110 mm Disc thickness:26 mm Minimum disc thickness:24.2 mm Number of holes:5 Solid or ventilated disk:Ventilated disk Weight:6.5 kg

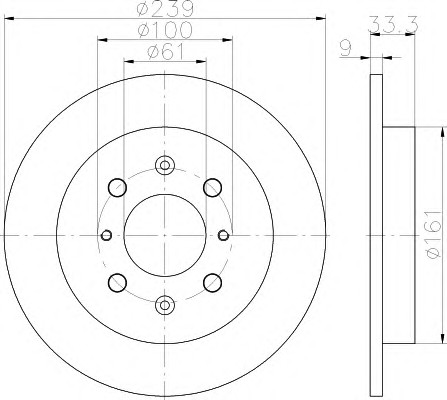

HONDA/HONDA (GUANGZHOU) Brake Disc 42510-TG5-H00

Location:Rear wheel Total height:33.2 mm Outer diameter:239 mm Center hole diameter:61 mm Pitch diameter:100 mm Disc thickness:9 mm Minimum disc thickness:8 mm Number of holes:4 Solid or ventilated disk:Solid disk Weight:2.7 kg

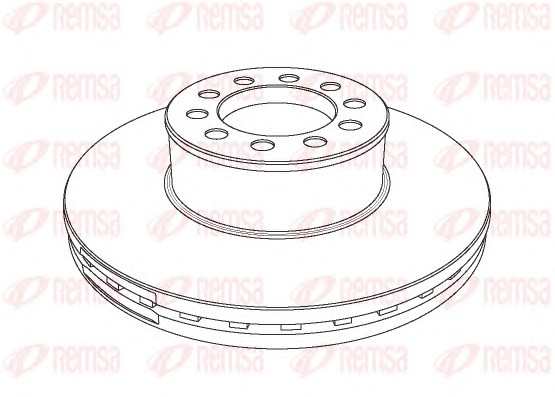

MAN Brake Disc 81.50803.0063

Location:Rear wheel Total height:118 mm Outer diameter:335 mm Center hole diameter:125 mm Pitch diameter:176 mm Disc thickness:34 mm Minimum disc thickness:26 mm Number of holes:10 Solid or ventilated disk:Ventilated disk Weight:17.5 kg

MAN Brake Disc 81.50803.0042

Location:Front wheel Total height:93 mm Outer diameter:335 mm Center hole diameter:90 mm Pitch diameter:122 mm Disc thickness:34 mm Minimum disc thickness:26 mm Number of holes:10 Solid or ventilated disk:Ventilated disk Weight:16.6 kg

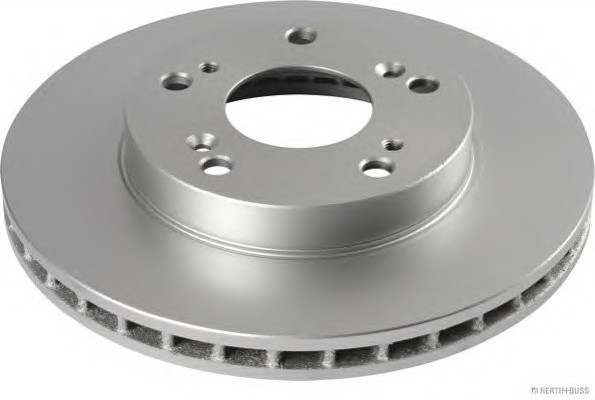

HONDA Brake Disc 45251-S30-000

Location:Front wheel Total height:47 mm Outer diameter:260 mm Center hole diameter:64 mm Disc thickness:23 mm Minimum disc thickness:21 mm Number of holes:5 Solid or ventilated disk:Ventilated disk Weight:5 kg

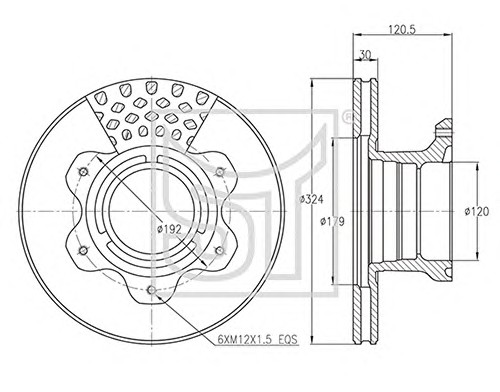

MERCEDES BENZ Brake Disc 668 423 05 12

Location:Rear wheel Total height:121 mm Outer diameter:324 mm Center hole diameter:119 mm Pitch diameter:192 mm Disc thickness:30 mm Minimum disc thickness:27 mm Number of holes:6 Solid or ventilated disk:Ventilated disk Weight:15 kg

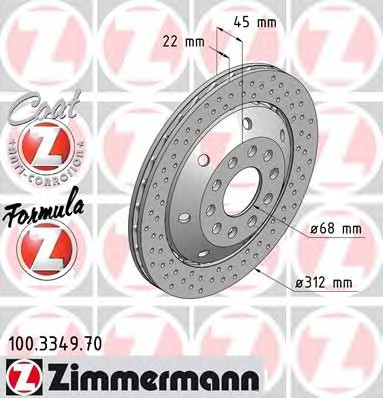

AUDI Brake Disc 8D0 615 602 A

Location:Rear wheel, Right Total height:45 mm Outer diameter:312 mm Center hole diameter:68 mm Pitch diameter:112 mm Disc thickness:22 mm Minimum disc thickness:20.4 mm Number of holes:5 Solid or ventilated disk:P/V Weight:5.2 kg

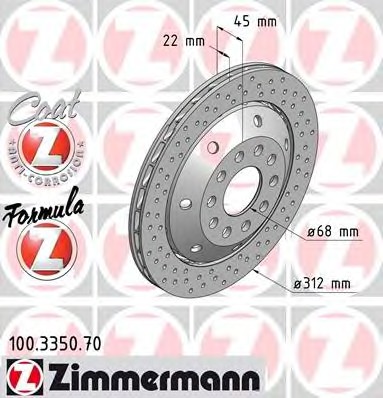

AUDI Brake Disc 8D0 615 601 F

Location:Rear wheel Total height:45 mm Outer diameter:312 mm Center hole diameter:68 mm Pitch diameter:112 mm Disc thickness:22 mm Minimum disc thickness:20.4 mm Number of holes:5 Solid or ventilated disk:P/V Weight:5.2 kg

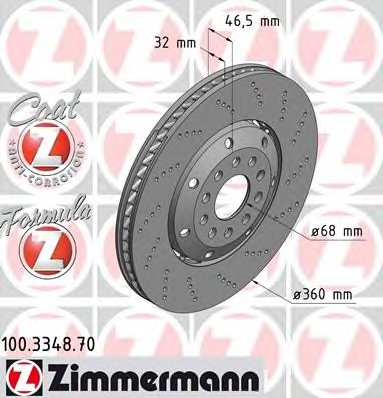

AUDI Brake Disc 8D0 615 302 A

Location:Front wheel, Right Total height:46.5 mm Outer diameter:360 mm Center hole diameter:68 mm Pitch diameter:112 mm Disc thickness:32 mm Minimum disc thickness:30.4 mm Number of holes:5 Solid or ventilated disk:P/V Weight:11.9 kg
