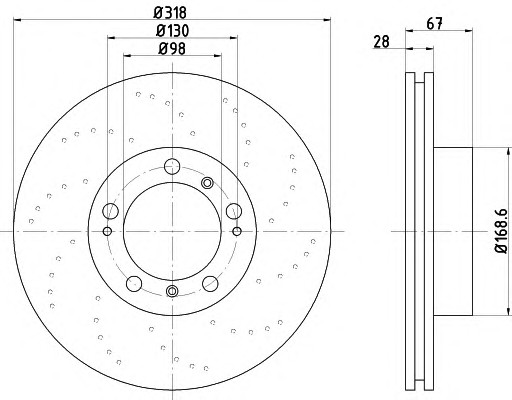

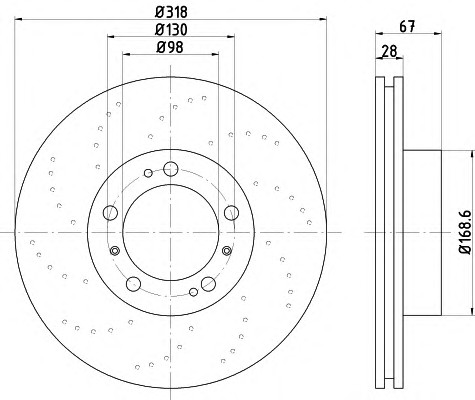

PORSCHE Brake Disc 996 351 405 01

Location:Front wheel, Left Total height:67 mm Outer diameter:318 mm Center hole diameter:98 mm Pitch diameter:130 mm Disc thickness:28 mm Minimum disc thickness:26 mm Number of holes:5 Solid or ventilated disk:P/V

PORSCHE Brake Disc 996 351 406 01

Location:Front wheel, Right Total height:67 mm Outer diameter:318 mm Center hole diameter:98 mm Pitch diameter:130 mm Disc thickness:28 mm Minimum disc thickness:26 mm Number of holes:5 Solid or ventilated disk:P/V

MERCEDES BENZ Brake Disc 210 421 14 12

Location:Front wheel Total height:46.5 mm Outer diameter:316 mm Center hole diameter:67 mm Pitch diameter:112 mm Disc thickness:28 mm Minimum disc thickness:25.4 mm Number of holes:5 Solid or ventilated disk:Ventilated disk Weight:9.7 kg

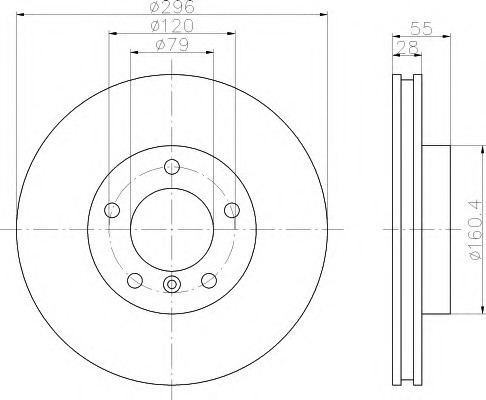

BMW Brake Disc 34 11 1 165 263

Location:Front wheel Total height:55 mm Outer diameter:296 mm Center hole diameter:79 mm Pitch diameter:120 mm Disc thickness:28 mm Minimum disc thickness:26.4 mm Number of holes:5 Solid or ventilated disk:Ventilated disk Weight:7.4 kg

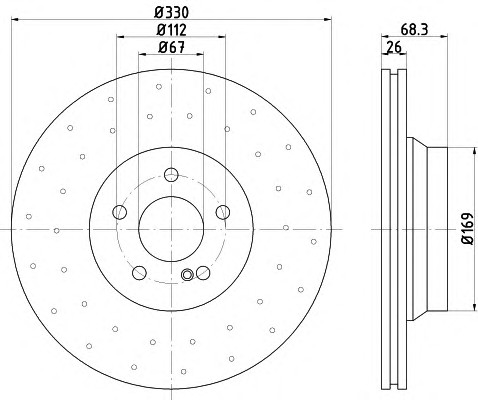

MERCEDES BENZ Brake Disc 211 423 10 12

Location:Rear wheel Total height:68.2 mm Outer diameter:330 mm Center hole diameter:67 mm Pitch diameter:112 mm Disc thickness:26 mm Minimum disc thickness:24 mm Number of holes:5 Solid or ventilated disk:Ventilated disk Weight:9.7 kg

OPEL/SUBARU/SUZUKI/VAUXHALL Brake Disc 55311-86G02

Location:Front wheel Total height:49 mm Outer diameter:253 mm Center hole diameter:60 mm Pitch diameter:100 mm Disc thickness:17 mm Minimum disc thickness:15 mm Number of holes:4 Solid or ventilated disk:Ventilated disk Weight:4.1 kg

CITROEN/FIAT/PEUGEOT Brake Disc 4246.Y9

Location:Rear wheel Total height:82 mm Outer diameter:280 mm Center hole diameter:72 mm Pitch diameter:118 mm Disc thickness:16 mm Minimum disc thickness:14.2 mm Number of holes:5 Solid or ventilated disk:Solid disk Weight:7.6 kg

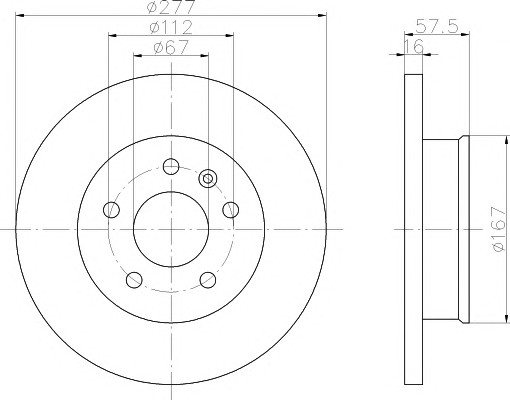

VOLKSWAGEN Brake Disc 251 407 615 R

Location:Front wheel Total height:57.5 mm Outer diameter:277 mm Center hole diameter:67 mm Pitch diameter:112 mm Disc thickness:16 mm Minimum disc thickness:13 mm Number of holes:5 Solid or ventilated disk:Solid disk Weight:5.8 kg

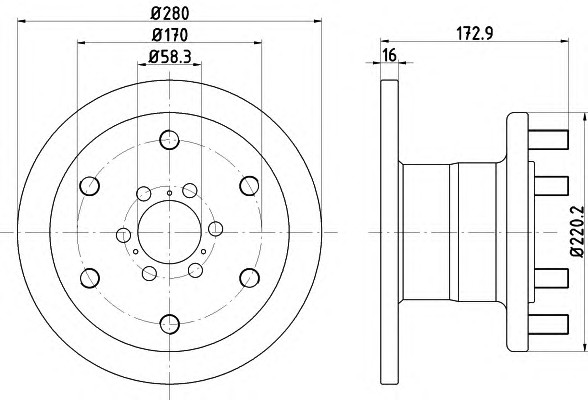

IVECO Brake Disc 8584182

Location:Front wheel Total height:142 mm Outer diameter:280 mm Center hole diameter:58.3 mm Pitch diameter:170 mm Disc thickness:16 mm Minimum disc thickness:14.5 mm Number of holes:6 Solid or ventilated disk:Solid disk Weight:13.3 kg

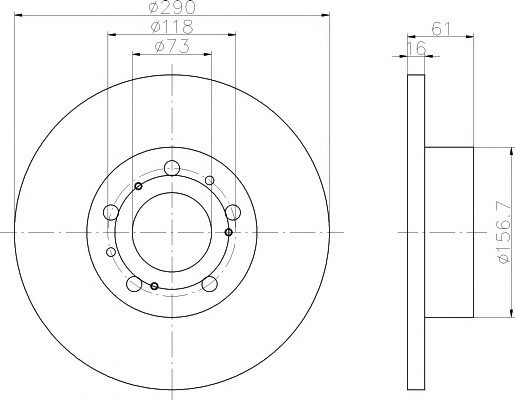

CITROEN/FIAT/PEUGEOT Brake Disc 4246.A0

Location:Front wheel Total height:61 mm Outer diameter:290 mm Center hole diameter:73 mm Pitch diameter:118 mm Disc thickness:16 mm Minimum disc thickness:14.8 mm Number of holes:5 Solid or ventilated disk:Solid disk Weight:7.35 kg

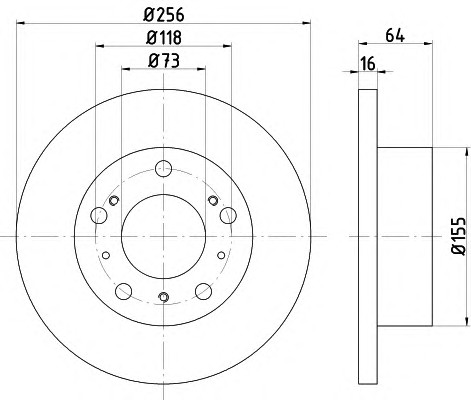

ALFA ROMEO/CITROEN/FIAT/PEUGEOT Brake Disc 4246.95

Location:Front wheel Total height:64.1 mm Outer diameter:256 mm Center hole diameter:73 mm Pitch diameter:118 mm Disc thickness:16.1 mm Minimum disc thickness:13.5 mm Number of holes:5 Solid or ventilated disk:Solid disk Weight:5.85 kg

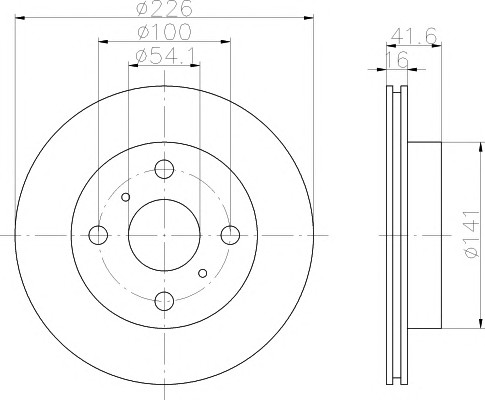

TOYOTA Brake Disc 43512-10070

Location:Front wheel Total height:41.6 mm Outer diameter:226 mm Center hole diameter:54 mm Pitch diameter:100 mm Disc thickness:16 mm Minimum disc thickness:15 mm Number of holes:4 Solid or ventilated disk:Ventilated disk Weight:3 kg

LANCIA Brake Disc 46763837

Location:Front wheel Total height:44.7 mm Outer diameter:281 mm Center hole diameter:59 mm Pitch diameter:98 mm Disc thickness:15 mm Minimum disc thickness:13.2 mm Number of holes:4 Solid or ventilated disk:Solid disk Weight:5.9 kg

ALFA ROMEO Brake Disc 60617106

Location:Front wheel Total height:44.7 mm Outer diameter:281 mm Center hole diameter:59 mm Pitch diameter:98 mm Disc thickness:15 mm Minimum disc thickness:13.2 mm Number of holes:5 Solid or ventilated disk:Solid disk Weight:5.9 kg

MERCEDES BENZ Brake Disc 164 423 05 12

Location:Rear wheel Total height:63 mm Outer diameter:330 mm Center hole diameter:67 mm Pitch diameter:112 mm Disc thickness:14 mm Minimum disc thickness:11.4 mm Number of holes:5 Solid or ventilated disk:Solid disk Weight:7.6 kg
