TOYOTA Brake Disc 43512-10040

Location:Front wheel Total height:31 mm Outer diameter:226 mm Center hole diameter:64 mm Pitch diameter:84 mm Disc thickness:10 mm Minimum disc thickness:9 mm Number of holes:4 Solid or ventilated disk:Solid disk Weight:3.03 kg

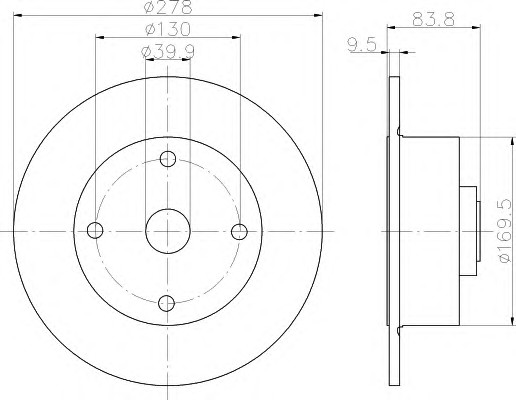

VOLKSWAGEN Brake Disc 113 407 075

Location:Front wheel Total height:83.8 mm Outer diameter:278 mm Pitch diameter:130 mm Disc thickness:9.5 mm Minimum disc thickness:8 mm Number of holes:4 Solid or ventilated disk:Solid disk Weight:6.5 kg

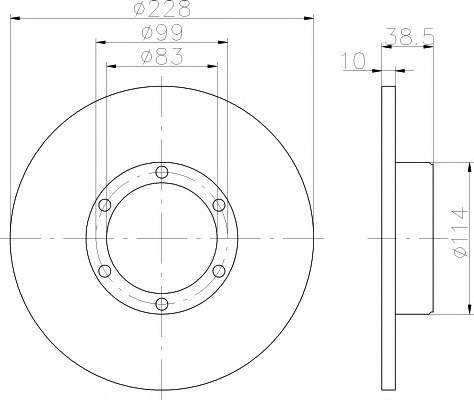

RENAULT Brake Disc 77 01 466 540

Location:Front wheel Total height:38.5 mm Outer diameter:228 mm Center hole diameter:83.1 mm Pitch diameter:99 mm Disc thickness:10 mm Minimum disc thickness:9 mm Number of holes:6 Solid or ventilated disk:Solid disk Weight:2.8 kg

DAEWOO/SUZUKI/BYD/SUZUKI (CHANGAN) Brake Disc 55511-82000

Location:Front wheel Total height:33.4 mm Outer diameter:215.1 mm Pitch diameter:102 mm Disc thickness:10 mm Minimum disc thickness:8 mm Number of holes:4 Solid or ventilated disk:Solid disk Weight:2.5 kg

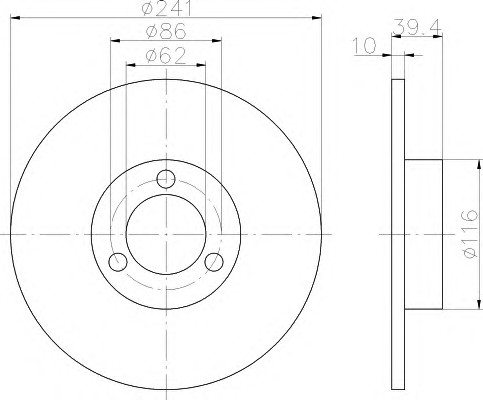

CITROEN/PEUGEOT/RENAULT Brake Disc 4246 63

Location:Front wheel Total height:39.4 mm Outer diameter:241 mm Pitch diameter:86 mm Disc thickness:10 mm Minimum disc thickness:9 mm Number of holes:3 Solid or ventilated disk:Solid disk Weight:3.3 kg

TOYOTA/CHERY Brake Disc 42431-42040

Location:Rear wheel Total height:62.1 mm Outer diameter:303 mm Pitch diameter:114.3 mm Disc thickness:9 mm Minimum disc thickness:8 mm Number of holes:5 Solid or ventilated disk:Solid disk

HONDA/HONDA (DONGFENG)/HONDA (GUANGZHOU) Brake Disc 42510-SCA-E50

Location:Rear wheel Total height:61 mm Outer diameter:304.5 mm Center hole diameter:64.3 mm Pitch diameter:114.3 mm Disc thickness:9 mm Minimum disc thickness:7.5 mm Number of holes:5 Solid or ventilated disk:Solid disk

CITROEN/PEUGEOT/CITROEN (DF-PSA)/PEUGEOT (DF-PSA) Brake Disc 4246.Z9

Location:Rear wheel Total height:67.1 mm Outer diameter:249 mm Pitch diameter:108 mm Disc thickness:9 mm Minimum disc thickness:8 mm Number of holes:4 Solid or ventilated disk:Solid disk Weight:5.1 kg

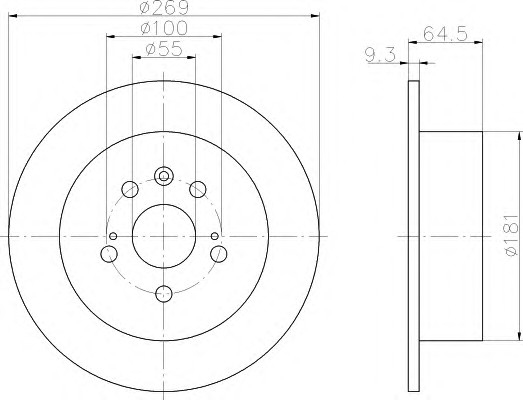

TOYOTA Brake Disc 42431-20360

Location:Rear wheel Total height:65 mm Outer diameter:269 mm Pitch diameter:100 mm Disc thickness:9 mm Minimum disc thickness:8 mm Number of holes:5 Solid or ventilated disk:Solid disk Weight:4 kg

NISSAN Brake Disc 43206-74F00

Location:Rear wheel Total height:46.5 mm Outer diameter:258 mm Pitch diameter:114.3 mm Disc thickness:9 mm Minimum disc thickness:8 mm Number of holes:5 Solid or ventilated disk:Solid disk Weight:3.6 kg

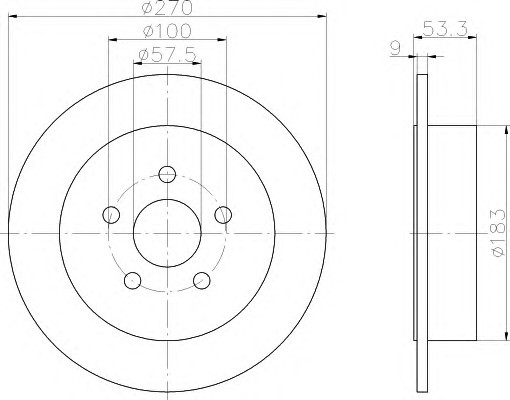

CHRYSLER/DODGE/NISSAN Brake Disc 4509 553AB

Location:Rear wheel Total height:53.3 mm Outer diameter:270 mm Center hole diameter:57.5 mm Pitch diameter:100 mm Disc thickness:9 mm Minimum disc thickness:7.3 mm Number of holes:5 Solid or ventilated disk:Solid disk Weight:3.8 kg

HONDA/HONDA (DONGFENG) Brake Disc 42510-S9A-N00

Location:Rear wheel Total height:58.3 mm Outer diameter:282 mm Center hole diameter:64.1 mm Pitch diameter:114.3 mm Disc thickness:9 mm Minimum disc thickness:8 mm Number of holes:5 Solid or ventilated disk:Solid disk Weight:4.2 kg

TOYOTA/TOYOTA (FAW)/DAIHATSU Brake Disc 42431-0D060

Location:Rear wheel Total height:24.7 mm Outer diameter:278 mm Center hole diameter:55 mm Pitch diameter:100 mm Disc thickness:9 mm Minimum disc thickness:7 mm Number of holes:4 Solid or ventilated disk:Solid disk Weight:3.4 kg

HONDA Brake Disc 42510-S30-900

Location:Rear wheel Total height:42.3 mm Outer diameter:260 mm Pitch diameter:114.3 mm Disc thickness:9 mm Minimum disc thickness:8 mm Number of holes:4 Solid or ventilated disk:Solid disk

TOYOTA Brake Disc 42431-02080

Location:Rear wheel Total height:55.5 mm Outer diameter:279 mm Pitch diameter:100 mm Disc thickness:9 mm Minimum disc thickness:8 mm Number of holes:4 Solid or ventilated disk:Solid disk
