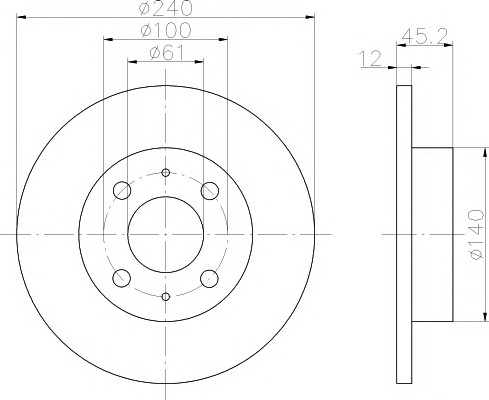

NISSAN Brake Disc 40206-61A11

Location:Front wheel Total height:45.2 mm Outer diameter:239.7 mm Center hole diameter:61.2 mm Pitch diameter:100 mm Disc thickness:12 mm Minimum disc thickness:11 mm Number of holes:4 Solid or ventilated disk:Solid disk Weight:3.9 kg

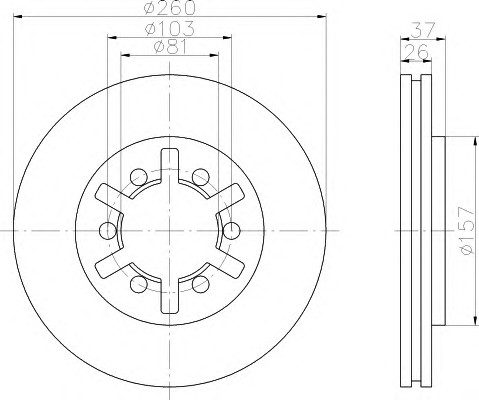

NISSAN/NISSAN (ZHENGZHOU) Brake Disc 40206-02N01

Location:Front wheel Total height:37 mm Outer diameter:260 mm Center hole diameter:81 mm Pitch diameter:103 mm Disc thickness:26 mm Minimum disc thickness:24 mm Number of holes:6 Solid or ventilated disk:Ventilated disk Weight:6.1 kg

NISSAN/NISSAN (DONGFENG) Brake Disc 40206-71E02

Location:Front wheel Total height:49.2 mm Outer diameter:257 mm Center hole diameter:68 mm Pitch diameter:114.3 mm Disc thickness:22 mm Minimum disc thickness:20 mm Number of holes:4 Solid or ventilated disk:Ventilated disk Weight:5.6 kg

NISSAN Brake Disc 40206-0M602

Location:Front wheel Total height:45.2 mm Outer diameter:232 mm Center hole diameter:61 mm Pitch diameter:100 mm Disc thickness:18 mm Minimum disc thickness:16 mm Number of holes:4 Solid or ventilated disk:Ventilated disk Weight:3.6 kg

HONDA Brake Disc 45251-SS0-A00

Location:Front wheel Total height:47.2 mm Outer diameter:282 mm Center hole diameter:64.1 mm Pitch diameter:114.3 mm Disc thickness:23 mm Minimum disc thickness:21 mm Number of holes:4 Solid or ventilated disk:Ventilated disk Weight:6 kg

HONDA/BYD/HONDA (DONGFENG)/GREAT WALL/HONDA (GUANGZHOU) Brake Disc 45251-S7A-N10

Location:Front wheel Total height:47.2 mm Outer diameter:282 mm Center hole diameter:64.2 mm Pitch diameter:114.3 mm Disc thickness:23 mm Minimum disc thickness:21 mm Number of holes:5 Solid or ventilated disk:Ventilated disk Weight:6.1 kg

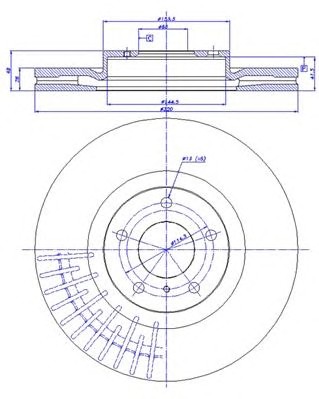

Brake Disc 40206-CG010

Location:Front wheel Total height:49.1 mm Outer diameter:319.5 mm Center hole diameter:68 mm Pitch diameter:114.3 mm Disc thickness:28 mm Minimum disc thickness:26 mm Number of holes:5 Solid or ventilated disk:Ventilated disk

Brake Disc 40206-AM800

Location:Front wheel Total height:49.3 mm Outer diameter:296 mm Center hole diameter:68 mm Pitch diameter:114.3 mm Disc thickness:24 mm Minimum disc thickness:22 mm Number of holes:5 Solid or ventilated disk:Ventilated disk Weight:7.5 kg

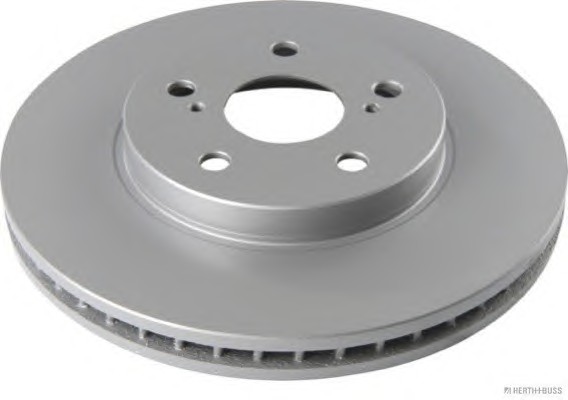

TOYOTA/TOYOTA (GUANGZHOU) Brake Disc 43512-28181

Location:Front wheel Total height:49.2 mm Outer diameter:296 mm Center hole diameter:62 mm Pitch diameter:114.3 mm Disc thickness:28 mm Minimum disc thickness:26 mm Number of holes:5 Solid or ventilated disk:Ventilated disk

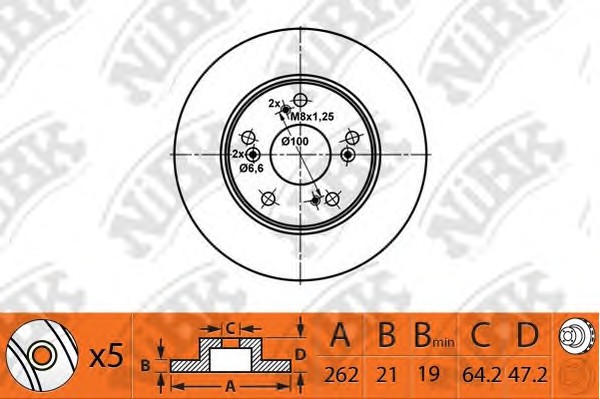

HONDA Brake Disc 45251-SNE-A00

Location:Front wheel Total height:47.1 mm Outer diameter:261.7 mm Center hole diameter:64 mm Pitch diameter:114 mm Disc thickness:21 mm Minimum disc thickness:19 mm Number of holes:5 Solid or ventilated disk:Ventilated disk Weight:5 kg

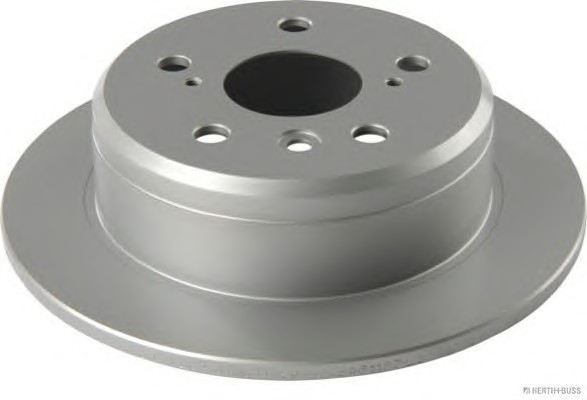

TOYOTA Brake Disc 42431-33010

Location:Rear wheel Total height:64.8 mm Outer diameter:269 mm Center hole diameter:62 mm Pitch diameter:114.3 mm Disc thickness:10 mm Minimum disc thickness:9 mm Number of holes:5 Solid or ventilated disk:Solid disk Weight:4.3 kg

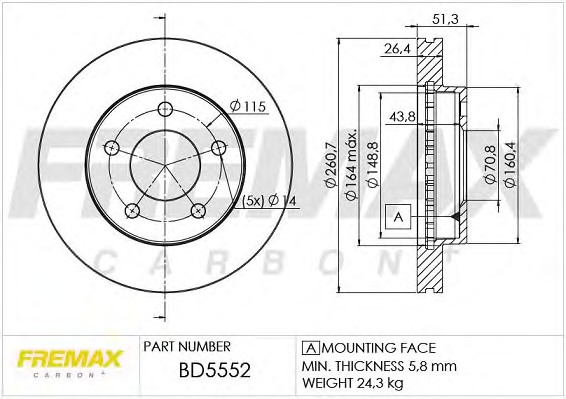

CADILLAC/PONTIAC Brake Disc 14035588

Location:Front wheel Total height:50.8 mm Outer diameter:260.6 mm Center hole diameter:70.6 mm Pitch diameter:115 mm Disc thickness:26.4 mm Minimum disc thickness:24.4 mm Number of holes:5 Solid or ventilated disk:Ventilated disk

FORD/SEAT/VOLKSWAGEN Brake Disc 7M3 615 301

Location:Front wheel Total height:56.2 mm Outer diameter:313 mm Center hole diameter:68.2 mm Pitch diameter:112 mm Disc thickness:25.9 mm Minimum disc thickness:22 mm Number of holes:5 Solid or ventilated disk:Ventilated disk Weight:9.3 kg

SKODA Brake Disc 115 430 212

Location:Front wheel Total height:48.6 mm Outer diameter:236 mm Center hole diameter:62 mm Pitch diameter:100 mm Disc thickness:12.7 mm Minimum disc thickness:11.4 mm Number of holes:4 Solid or ventilated disk:Solid disk Weight:3.7 kg

SKODA Brake Disc 115 430 211

Location:Front wheel Total height:45.6 mm Outer diameter:236 mm Center hole diameter:62 mm Pitch diameter:98 mm Disc thickness:12.8 mm Minimum disc thickness:11.4 mm Number of holes:4 Solid or ventilated disk:Solid disk Weight:3.65 kg
