MERCEDES BENZ Brake Disc 169 421 02 12

Location:Front wheel Total height:44.2 mm Outer diameter:288 mm Center hole diameter:67.1 mm Pitch diameter:112 mm Disc thickness:25 mm Minimum disc thickness:22.4 mm Number of holes:5 Solid or ventilated disk:Ventilated disk Weight:6.1 kg

MERCEDES BENZ Brake Disc 169 423 03 12

Location:Rear wheel Total height:57.3 mm Outer diameter:258 mm Center hole diameter:67.1 mm Pitch diameter:112 mm Disc thickness:8 mm Minimum disc thickness:7 mm Number of holes:5 Solid or ventilated disk:Solid disk Weight:3.3 kg

IVECO Brake Disc 1906461

Location:Front Axle, Rear Axle Total height:138 mm Outer diameter:436 mm Center hole diameter:210 mm Pitch diameter:240 mm Disc thickness:45 mm Minimum disc thickness:37 mm Solid or ventilated disk:Ventilated disk Weight:38.1 kg

IVECO Brake Disc 1907725

Location:Front wheel Total height:129 mm Outer diameter:304 mm Center hole diameter:165 mm Pitch diameter:205 mm Disc thickness:30 mm Minimum disc thickness:27.8 mm Number of holes:6 Solid or ventilated disk:Ventilated disk Weight:13.8 kg

IVECO Brake Disc 1908729

Location:Front wheel Total height:101 mm Outer diameter:430 mm Center hole diameter:170 mm Pitch diameter:195 mm Disc thickness:50 mm Minimum disc thickness:46 mm Solid or ventilated disk:Ventilated disk Weight:37.6 kg

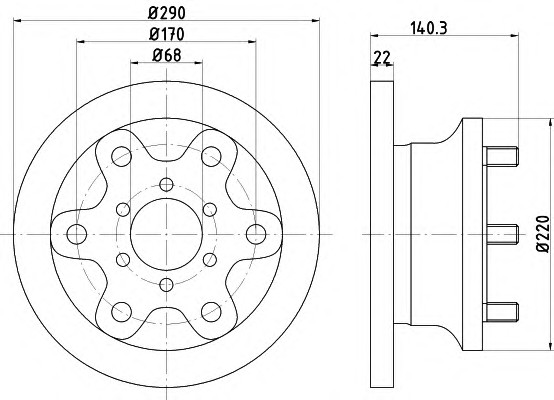

IVECO Brake Disc 1908772

Location:Front wheel Total height:111 mm Outer diameter:290 mm Center hole diameter:68 mm Pitch diameter:170 mm Disc thickness:22 mm Minimum disc thickness:19 mm Number of holes:6 Solid or ventilated disk:Solid disk Weight:14.5 kg

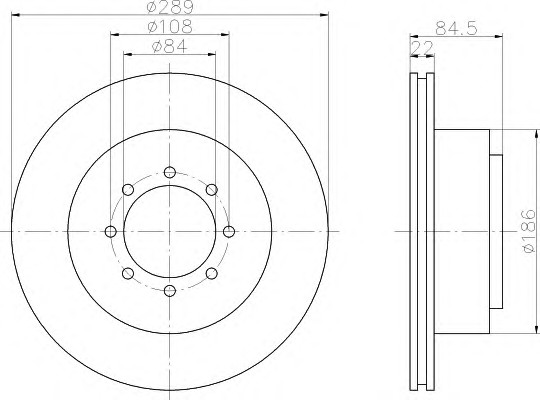

IVECO Brake Disc 1908773

Location:Rear wheel Total height:85 mm Outer diameter:289 mm Center hole diameter:84 mm Pitch diameter:108 mm Disc thickness:22 mm Minimum disc thickness:19 mm Number of holes:8 Solid or ventilated disk:Solid disk Weight:9.5 kg

SEAT/VOLKSWAGEN Brake Disc 191 615 601 B

Location:Rear wheel Total height:71.2 mm Outer diameter:226 mm Center hole diameter:39.8 mm Pitch diameter:100 mm Disc thickness:10 mm Minimum disc thickness:8 mm Number of holes:4 Solid or ventilated disk:Solid disk Weight:4.4 kg

FORD/MAZDA Brake Disc 1E03-33-251

Location:Front wheel Total height:42.9 mm Outer diameter:239.5 mm Center hole diameter:63.5 mm Pitch diameter:108 mm Disc thickness:12 mm Minimum disc thickness:10 mm Number of holes:4 Solid or ventilated disk:Solid disk Weight:3.6 kg

SEAT/VOLKSWAGEN Brake Disc 1H0 615 301 A

Location:Front wheel Total height:28.5 mm Outer diameter:280 mm Center hole diameter:65 mm Pitch diameter:100 mm Disc thickness:22 mm Minimum disc thickness:20 mm Number of holes:5 Solid or ventilated disk:RV Weight:5.65 kg

AUDI/SEAT/SKODA/VOLKSWAGEN/VW (FAW)/VW (SVW)/SKODA (SVW )/ZHONGHUA(BRILLIANCE) Brake Disc 1J0 615 301 D

Location:Front wheel Total height:36.6 mm Outer diameter:256 mm Center hole diameter:65 mm Pitch diameter:100 mm Disc thickness:22 mm Minimum disc thickness:19 mm Number of holes:5 Solid or ventilated disk:Ventilated disk Weight:5.1 kg

AUDI/SEAT/SKODA/VOLKSWAGEN/VW (SVW)/VW (FAW)/ZHONGHUA(BRILLIANCE) Brake Disc 1J0 615 301 E

Location:Front wheel Total height:36.7 mm Outer diameter:280 mm Center hole diameter:65 mm Pitch diameter:100 mm Disc thickness:22 mm Minimum disc thickness:19 mm Number of holes:5 Solid or ventilated disk:Ventilated disk Weight:6 kg

AUDI/SEAT/SKODA/VOLKSWAGEN/VW (FAW)/SKODA (SVW ) Brake Disc 1J0 615 301 R

Location:Front wheel Total height:34.5 mm Outer diameter:288 mm Center hole diameter:65 mm Pitch diameter:100 mm Disc thickness:25 mm Minimum disc thickness:22 mm Number of holes:5 Solid or ventilated disk:Ventilated disk Weight:7.2 kg

SKODA/VW (FAW)/VW (SVW)/SKODA (SVW )/ZHONGHUA(BRILLIANCE) Brake Disc 1J0 615 601

Location:Rear wheel Total height:39.5 mm Outer diameter:232 mm Center hole diameter:65 mm Pitch diameter:100 mm Disc thickness:9 mm Minimum disc thickness:7 mm Number of holes:5 Solid or ventilated disk:Solid disk Weight:2.6 kg

AUDI/SKODA/VOLKSWAGEN Brake Disc 1J0 615 601 D

Location:Rear wheel Total height:33.4 mm Outer diameter:239 mm Center hole diameter:65 mm Pitch diameter:100 mm Disc thickness:8.9 mm Minimum disc thickness:7 mm Number of holes:5 Solid or ventilated disk:Solid disk Weight:2.7 kg
