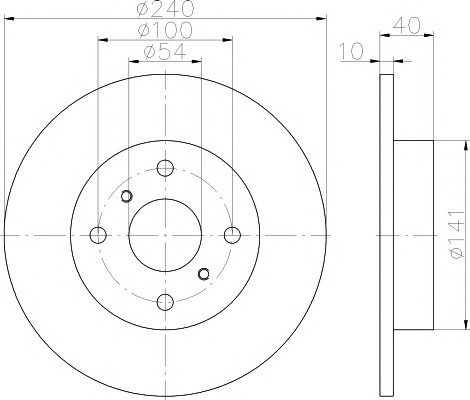

TOYOTA Brake Disc 42431-17010

Location:Front wheel Total height:40 mm Outer diameter:240 mm Center hole diameter:54 mm Pitch diameter:100 mm Disc thickness:10 mm Minimum disc thickness:9 mm Number of holes:4 Solid or ventilated disk:Solid disk

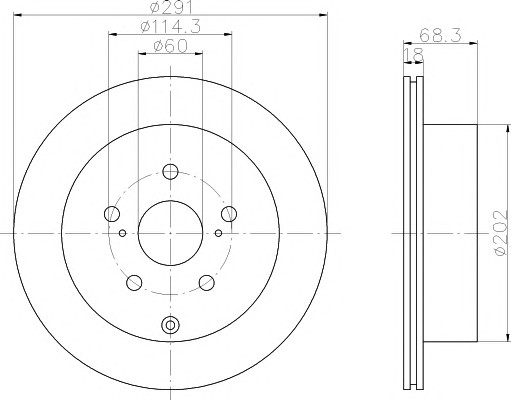

TOYOTA Brake Disc 42431-14100

Location:Rear wheel Total height:68.4 mm Outer diameter:291 mm Center hole diameter:60 mm Pitch diameter:114.3 mm Disc thickness:18 mm Minimum disc thickness:17 mm Number of holes:5 Solid or ventilated disk:Ventilated disk Weight:5.8 kg

TOYOTA Brake Disc 42431-14070

Location:Rear wheel Total height:60.3 mm Outer diameter:266 mm Center hole diameter:60 mm Pitch diameter:138 mm Disc thickness:18 mm Minimum disc thickness:17 mm Number of holes:4 Solid or ventilated disk:Ventilated disk Weight:4.6 kg

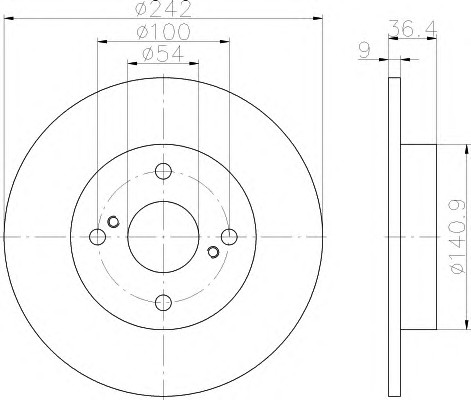

TOYOTA Brake Disc 42431-12090

Location:Rear wheel Total height:36.4 mm Outer diameter:242 mm Center hole diameter:54 mm Pitch diameter:100 mm Disc thickness:9 mm Minimum disc thickness:8 mm Number of holes:4 Solid or ventilated disk:Solid disk Weight:2.83 kg

TOYOTA Brake Disc 42431-12070

Location:Rear wheel Total height:47.6 mm Outer diameter:231 mm Center hole diameter:60 mm Pitch diameter:114.3 mm Disc thickness:10 mm Minimum disc thickness:9 mm Number of holes:4 Solid or ventilated disk:Solid disk Weight:3.4 kg

MERCEDES BENZ Brake Disc 220 423 02 12

Location:Rear wheel Total height:58.5 mm Outer diameter:300 mm Center hole diameter:67 mm Pitch diameter:112 mm Disc thickness:22 mm Minimum disc thickness:19.4 mm Number of holes:5 Solid or ventilated disk:Ventilated disk Weight:6.7 kg

MERCEDES BENZ Brake Disc 220 421 08 12

Location:Front wheel Total height:76 mm Outer diameter:330 mm Center hole diameter:67 mm Pitch diameter:112 mm Disc thickness:32 mm Minimum disc thickness:30 mm Number of holes:5 Solid or ventilated disk:P/V Weight:9.9 kg

MERCEDES BENZ Brake Disc 211 423 09 12

Location:Rear wheel Total height:68.2 mm Outer diameter:300 mm Center hole diameter:67 mm Pitch diameter:112 mm Disc thickness:22 mm Minimum disc thickness:19.4 mm Number of holes:5 Solid or ventilated disk:Ventilated disk Weight:7.1 kg

MERCEDES BENZ Brake Disc 211 423 07 12

Location:Rear wheel Total height:68.5 mm Outer diameter:300 mm Center hole diameter:67 mm Pitch diameter:112 mm Disc thickness:10 mm Minimum disc thickness:8.3 mm Number of holes:5 Solid or ventilated disk:Solid disk Weight:5.1 kg

MERCEDES BENZ Brake Disc 211 421 09 12

Location:Front wheel Total height:64.5 mm Outer diameter:312 mm Center hole diameter:67 mm Pitch diameter:112 mm Disc thickness:28 mm Minimum disc thickness:25.4 mm Number of holes:5 Solid or ventilated disk:Ventilated disk Weight:8.8 kg

MERCEDES BENZ Brake Disc 211 421 08 12

Location:Front wheel Total height:54.5 mm Outer diameter:295 mm Center hole diameter:67 mm Pitch diameter:112 mm Disc thickness:28 mm Minimum disc thickness:25.4 mm Number of holes:5 Solid or ventilated disk:Ventilated disk Weight:8 kg

MERCEDES BENZ Brake Disc 210 423 06 12

Location:Rear wheel Total height:55.5 mm Outer diameter:290 mm Center hole diameter:67 mm Pitch diameter:112 mm Disc thickness:10 mm Minimum disc thickness:8.3 mm Number of holes:5 Solid or ventilated disk:Solid disk Weight:4.6 kg

MERCEDES BENZ Brake Disc 210 423 05 12

Location:Rear wheel Total height:56 mm Outer diameter:290 mm Center hole diameter:67 mm Pitch diameter:112 mm Disc thickness:12 mm Minimum disc thickness:10.3 mm Number of holes:5 Solid or ventilated disk:Solid disk Weight:5.1 kg

MERCEDES BENZ Brake Disc 203 421 05 12

Location:Front wheel Total height:46.5 mm Outer diameter:300 mm Center hole diameter:67 mm Pitch diameter:112 mm Disc thickness:28 mm Minimum disc thickness:25.4 mm Number of holes:5 Solid or ventilated disk:Ventilated disk Weight:8 kg

MERCEDES BENZ Brake Disc 203 421 03 12

Location:Front wheel Total height:46.5 mm Outer diameter:288 mm Center hole diameter:67 mm Pitch diameter:112 mm Disc thickness:25 mm Minimum disc thickness:22.4 mm Number of holes:5 Solid or ventilated disk:Ventilated disk Weight:6.3 kg
