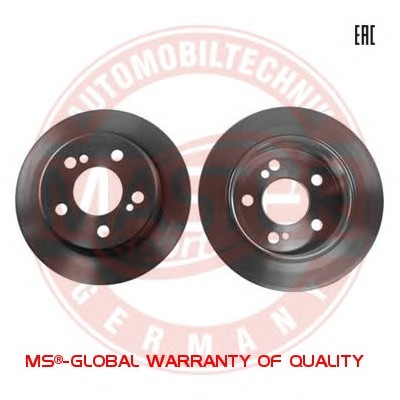

MERCEDES BENZ Brake Disc 202 423 00 12

Location:Rear wheel Total height:55.5 mm Outer diameter:258 mm Center hole diameter:67 mm Pitch diameter:112 mm Disc thickness:9 mm Minimum disc thickness:7.3 mm Number of holes:5 Solid or ventilated disk:Solid disk Weight:3.2 kg

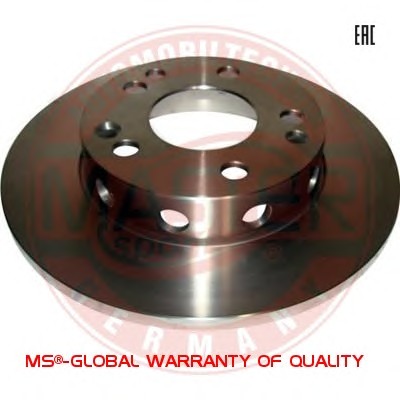

MERCEDES BENZ Brake Disc 202 421 09 12

Location:Front wheel Total height:43.5 mm Outer diameter:284 mm Center hole diameter:67 mm Pitch diameter:112 mm Disc thickness:22 mm Minimum disc thickness:19.4 mm Number of holes:5 Solid or ventilated disk:Ventilated disk Weight:6 kg

MERCEDES BENZ Brake Disc 202 421 02 12

Location:Front wheel Total height:43.7 mm Outer diameter:284 mm Center hole diameter:67.1 mm Pitch diameter:112 mm Disc thickness:11.9 mm Minimum disc thickness:10.2 mm Number of holes:5 Solid or ventilated disk:Solid disk Weight:4.75 kg

MERCEDES BENZ Brake Disc 201 423 09 12

Location:Rear wheel Total height:55.5 mm Outer diameter:258 mm Center hole diameter:67 mm Pitch diameter:112 mm Disc thickness:9 mm Minimum disc thickness:7.3 mm Number of holes:5 Solid or ventilated disk:Solid disk Weight:3.2 kg

MERCEDES BENZ Brake Disc 201 421 13 12

Location:Front wheel Total height:44.5 mm Outer diameter:262 mm Center hole diameter:67 mm Pitch diameter:112 mm Disc thickness:22 mm Minimum disc thickness:19.4 mm Number of holes:5 Solid or ventilated disk:Ventilated disk Weight:5.1 kg

MERCEDES BENZ Brake Disc 201 421 12 12

Location:Front wheel Total height:45.5 mm Outer diameter:262 mm Center hole diameter:67 mm Pitch diameter:112 mm Disc thickness:11 mm Minimum disc thickness:9 mm Number of holes:5 Solid or ventilated disk:Solid disk Weight:3.8 kg

MERCEDES BENZ Brake Disc 163 423 00 12

Location:Rear wheel Total height:55.3 mm Outer diameter:331 mm Center hole diameter:67 mm Pitch diameter:112 mm Disc thickness:13.9 mm Minimum disc thickness:12.3 mm Number of holes:5 Solid or ventilated disk:Solid disk

MERCEDES BENZ Brake Disc 163 421 03 12

Location:Front wheel Total height:51 mm Outer diameter:345 mm Center hole diameter:67 mm Pitch diameter:112 mm Disc thickness:31.9 mm Minimum disc thickness:30 mm Number of holes:5 Solid or ventilated disk:Ventilated disk Weight:11.3 kg

MERCEDES BENZ Brake Disc 163 421 01 12

Location:Rear wheel Total height:55.5 mm Outer diameter:285 mm Center hole diameter:67 mm Pitch diameter:112 mm Disc thickness:15 mm Minimum disc thickness:13 mm Number of holes:5 Solid or ventilated disk:Solid disk Weight:6 kg

MERCEDES BENZ Brake Disc 163 421 00 12

Location:Front wheel Total height:51.5 mm Outer diameter:303 mm Center hole diameter:67 mm Pitch diameter:112 mm Disc thickness:26 mm Minimum disc thickness:23 mm Number of holes:5 Solid or ventilated disk:Ventilated disk Weight:7.5 kg

MERCEDES BENZ Brake Disc 140 423 06 12

Location:Rear wheel Total height:60 mm Outer diameter:290 mm Center hole diameter:67 mm Pitch diameter:112 mm Disc thickness:12 mm Minimum disc thickness:9.8 mm Number of holes:5 Solid or ventilated disk:Solid disk Weight:5.5 kg

MERCEDES BENZ Brake Disc 140 423 04 12

Location:Rear wheel Total height:60 mm Outer diameter:300 mm Center hole diameter:67 mm Pitch diameter:112 mm Disc thickness:22 mm Minimum disc thickness:19.4 mm Number of holes:5 Solid or ventilated disk:Ventilated disk Weight:7 kg

MERCEDES BENZ Brake Disc 140 421 03 12

Location:Front wheel Total height:82 mm Outer diameter:310 mm Center hole diameter:67 mm Pitch diameter:112 mm Disc thickness:28 mm Minimum disc thickness:25.4 mm Number of holes:5 Solid or ventilated disk:Ventilated disk Weight:8.5 kg

MERCEDES BENZ Brake Disc 140 421 09 12

Location:Front wheel Total height:82 mm Outer diameter:320 mm Center hole diameter:67 mm Pitch diameter:112 mm Disc thickness:30 mm Minimum disc thickness:27.4 mm Number of holes:5 Solid or ventilated disk:Ventilated disk

MERCEDES BENZ Brake Disc 129 423 00 12

Location:Rear wheel Total height:58.5 mm Outer diameter:278 mm Center hole diameter:67 mm Pitch diameter:112 mm Disc thickness:9 mm Minimum disc thickness:7.3 mm Number of holes:5 Solid or ventilated disk:Solid disk Weight:3.95 kg
