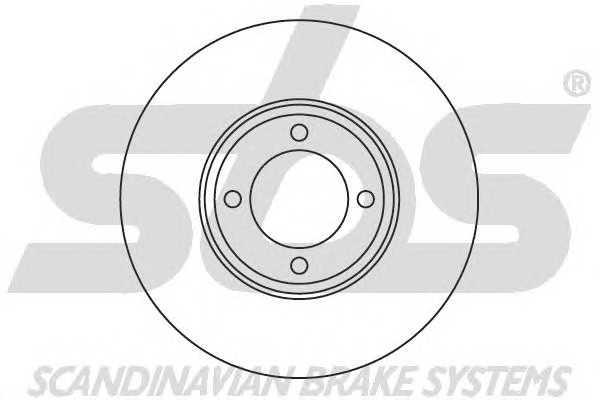

TOYOTA Brake Disc 43512-16031

Location:Front wheel Total height:39.3 mm Outer diameter:242.9 mm Pitch diameter:100 mm Disc thickness:11 mm Minimum disc thickness:10 mm Number of holes:4 Solid or ventilated disk:Solid disk Weight:3.4 kg

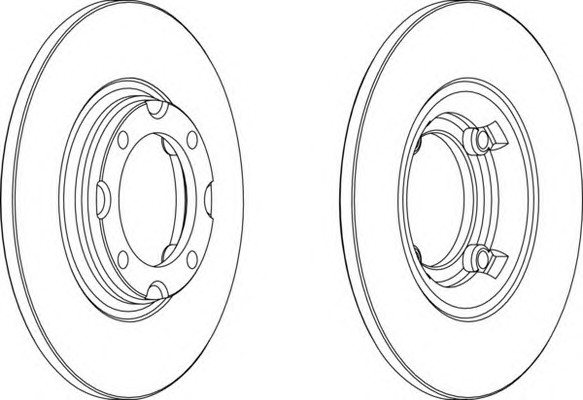

TOYOTA Brake Disc 43512-16020

Location:Front wheel Total height:29.8 mm Outer diameter:226 mm Center hole diameter:76 mm Pitch diameter:96 mm Disc thickness:10 mm Minimum disc thickness:9 mm Number of holes:4 Solid or ventilated disk:Solid disk Weight:2.6 kg

TOYOTA Brake Disc 43512-14080

Location:Front wheel Total height:26.2 mm Outer diameter:258 mm Center hole diameter:76 mm Pitch diameter:100 mm Disc thickness:20 mm Minimum disc thickness:19 mm Number of holes:4 Solid or ventilated disk:Ventilated disk

TOYOTA Brake Disc 43512-12550

Location:Front wheel Total height:48.1 mm Outer diameter:255 mm Center hole diameter:55 mm Pitch diameter:100 mm Disc thickness:22 mm Minimum disc thickness:20 mm Number of holes:4 Solid or ventilated disk:Ventilated disk Weight:4.95 kg

TOYOTA Brake Disc 43512-12440

Location:Front wheel Total height:48.2 mm Outer diameter:238 mm Center hole diameter:54.1 mm Pitch diameter:100 mm Disc thickness:18 mm Minimum disc thickness:17 mm Number of holes:4 Solid or ventilated disk:Ventilated disk Weight:4.1 kg

TOYOTA Brake Disc 43512-12160

Location:Front wheel Total height:47.4 mm Outer diameter:243 mm Center hole diameter:54 mm Pitch diameter:100 mm Disc thickness:13.5 mm Minimum disc thickness:12.5 mm Number of holes:4 Solid or ventilated disk:Solid disk Weight:4 kg

TOYOTA Brake Disc 43512-12130

Location:Front wheel Total height:38 mm Outer diameter:234 mm Center hole diameter:64 mm Pitch diameter:87 mm Disc thickness:18 mm Minimum disc thickness:17 mm Number of holes:4 Solid or ventilated disk:Ventilated disk Weight:3.85 kg

TOYOTA/DAIHATSU Brake Disc 43512-12120

Location:Front wheel Total height:23 mm Outer diameter:229 mm Center hole diameter:64 mm Pitch diameter:87 mm Disc thickness:12.5 mm Minimum disc thickness:11.5 mm Number of holes:4 Solid or ventilated disk:Solid disk Weight:3.14 kg

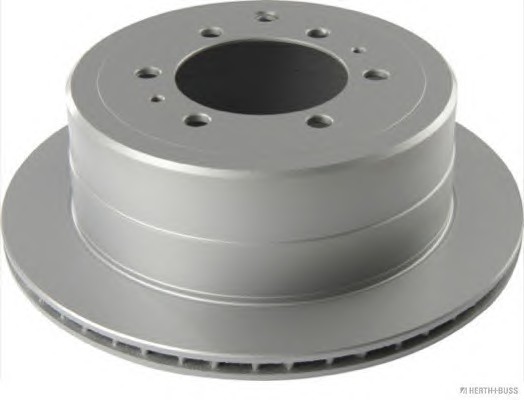

TOYOTA Brake Disc 42431-60170

Location:Rear wheel Total height:103 mm Outer diameter:335 mm Center hole diameter:106 mm Pitch diameter:139.7 mm Disc thickness:18 mm Minimum disc thickness:16 mm Number of holes:6 Solid or ventilated disk:Ventilated disk Weight:7.8 kg

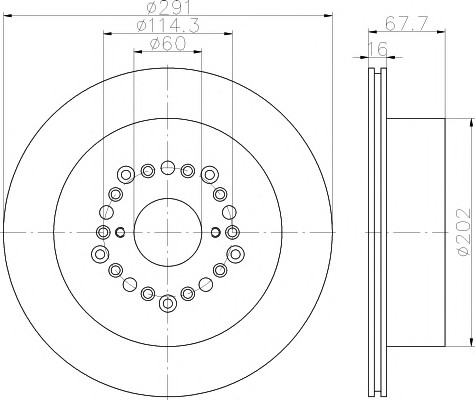

LEXUS Brake Disc 42431-50020

Location:Rear wheel Total height:67.3 mm Outer diameter:290.8 mm Center hole diameter:60.2 mm Pitch diameter:114.3 mm Disc thickness:16 mm Minimum disc thickness:15 mm Number of holes:5 Solid or ventilated disk:Ventilated disk Weight:5.1 kg

TOYOTA Brake Disc 42431-33050

Location:Rear wheel Total height:64 mm Outer diameter:288 mm Center hole diameter:62 mm Pitch diameter:114 mm Disc thickness:10 mm Minimum disc thickness:8.5 mm Number of holes:5 Solid or ventilated disk:Solid disk Weight:5 kg

LEXUS Brake Disc 42431-30190

Location:Rear wheel Total height:67 mm Outer diameter:307 mm Center hole diameter:62 mm Pitch diameter:114.3 mm Disc thickness:16 mm Minimum disc thickness:14.4 mm Number of holes:5 Solid or ventilated disk:Ventilated disk Weight:5.6 kg

TOYOTA Brake Disc 42431-22081

Location:Rear wheel Total height:60.2 mm Outer diameter:269 mm Center hole diameter:60 mm Pitch diameter:114.3 mm Disc thickness:18 mm Minimum disc thickness:17 mm Number of holes:4 Solid or ventilated disk:Ventilated disk Weight:4.85 kg

TOYOTA Brake Disc 42431-20100

Location:Rear wheel Total height:60 mm Outer diameter:269 mm Center hole diameter:54 mm Pitch diameter:100 mm Disc thickness:10 mm Minimum disc thickness:9 mm Number of holes:5 Solid or ventilated disk:Solid disk

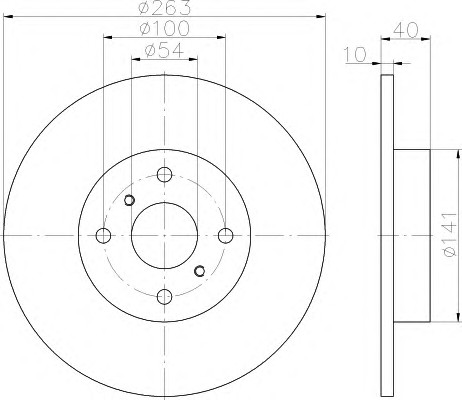

TOYOTA Brake Disc 42431-17020

Location:Front wheel Total height:40.1 mm Outer diameter:263.1 mm Center hole diameter:54 mm Pitch diameter:100 mm Disc thickness:10 mm Minimum disc thickness:9 mm Number of holes:4 Solid or ventilated disk:Solid disk
