VOLKSWAGEN Brake Disc 7H0 615 301 D

Location:Front wheel Total height:55.6 mm Outer diameter:308 mm Center hole diameter:76 mm Pitch diameter:120 mm Disc thickness:29.5 mm Minimum disc thickness:25.5 mm Number of holes:5 Solid or ventilated disk:Ventilated disk Weight:10.3 kg

VOLKSWAGEN Brake Disc 7H0 615 301 F

Location:Front wheel Total height:55.6 mm Outer diameter:333 mm Center hole diameter:76 mm Pitch diameter:120 mm Disc thickness:32.5 mm Minimum disc thickness:28.5 mm Number of holes:5 Solid or ventilated disk:Ventilated disk Weight:11.7 kg

VOLKSWAGEN Brake Disc 7H0 615 601 B

Location:Rear wheel Total height:44.4 mm Outer diameter:294 mm Center hole diameter:76 mm Pitch diameter:120 mm Disc thickness:21.9 mm Minimum disc thickness:19.5 mm Number of holes:5 Solid or ventilated disk:Ventilated disk Weight:6.9 kg

PORSCHE/VOLKSWAGEN Brake Disc 7L6 615 301 D

Location:Front wheel, Left Total height:68.5 mm Outer diameter:330 mm Center hole diameter:85 mm Pitch diameter:130 mm Disc thickness:32 mm Minimum disc thickness:30 mm Number of holes:5 Solid or ventilated disk:Ventilated disk Weight:11.1 kg

PORSCHE/VOLKSWAGEN/AUDI Brake Disc 7L6 615 301 E

Location:Front wheel, Left Total height:68.5 mm Outer diameter:350 mm Center hole diameter:85 mm Pitch diameter:130 mm Disc thickness:34 mm Minimum disc thickness:32 mm Number of holes:5 Solid or ventilated disk:Ventilated disk Weight:12.1 kg

PORSCHE/VOLKSWAGEN Brake Disc 7L6 615 302 D

Location:Front wheel, Right Total height:68.5 mm Outer diameter:330 mm Center hole diameter:85 mm Pitch diameter:130 mm Disc thickness:32 mm Minimum disc thickness:30 mm Number of holes:5 Solid or ventilated disk:Ventilated disk Weight:11.1 kg

PORSCHE/VOLKSWAGEN/AUDI Brake Disc 7L6 615 302 E

Location:Front wheel, Right Total height:68.5 mm Outer diameter:350 mm Center hole diameter:85 mm Pitch diameter:130 mm Disc thickness:34 mm Minimum disc thickness:32 mm Number of holes:5 Solid or ventilated disk:Ventilated disk Weight:12.1 kg

PORSCHE/VOLKSWAGEN/AUDI Brake Disc 7L6 615 601 D

Location:Rear wheel Total height:73.5 mm Outer diameter:330 mm Center hole diameter:85 mm Pitch diameter:130 mm Disc thickness:28 mm Minimum disc thickness:26 mm Number of holes:5 Solid or ventilated disk:Ventilated disk Weight:8.6 kg

FORD/SEAT/VOLKSWAGEN Brake Disc 7M0 615 301 E

Location:Front wheel Total height:55.4 mm Outer diameter:288 mm Center hole diameter:68.2 mm Pitch diameter:112 mm Disc thickness:25.1 mm Minimum disc thickness:21 mm Number of holes:5 Solid or ventilated disk:Ventilated disk Weight:7.4 kg

FORD/SEAT/VOLKSWAGEN Brake Disc 7M0 615 601 A

Location:Rear wheel Total height:45.8 mm Outer diameter:268 mm Center hole diameter:68.2 mm Pitch diameter:112 mm Disc thickness:10 mm Minimum disc thickness:8 mm Number of holes:5 Solid or ventilated disk:Solid disk Weight:4.2 kg

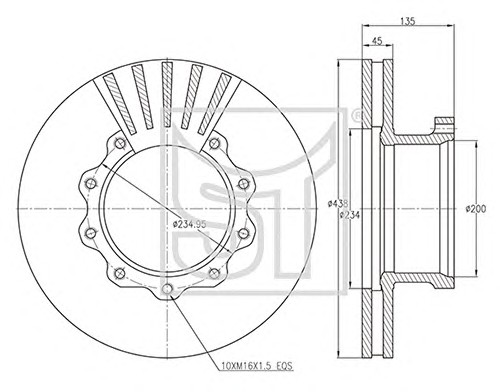

MAN Brake Disc 81.50803.0009

Location:Front wheel Total height:135 mm Outer diameter:438 mm Center hole diameter:200 mm Pitch diameter:235 mm Disc thickness:45 mm Minimum disc thickness:35 mm Number of holes:10 Solid or ventilated disk:Ventilated disk Weight:35.5 kg

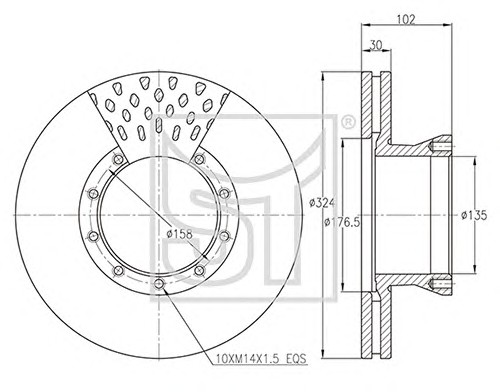

MAN Brake Disc 81.50803.0010

Location:Front wheel Total height:102 mm Outer diameter:324 mm Center hole diameter:135 mm Pitch diameter:158 mm Disc thickness:30 mm Minimum disc thickness:24 mm Number of holes:10 Solid or ventilated disk:Ventilated disk Weight:13.8 kg

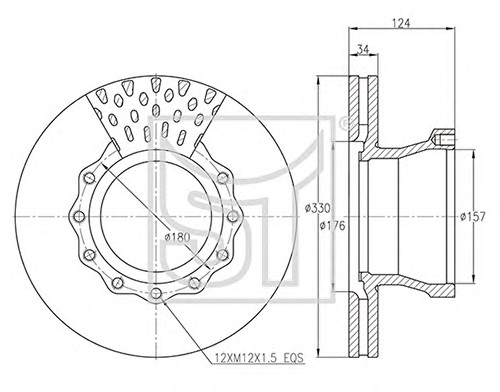

MAN Brake Disc 81.50803.0022

Location:Rear wheel Total height:124 mm Outer diameter:330 mm Pitch diameter:180 mm Disc thickness:34 mm Minimum disc thickness:28 mm Number of holes:12 Solid or ventilated disk:Ventilated disk Weight:16.7 kg

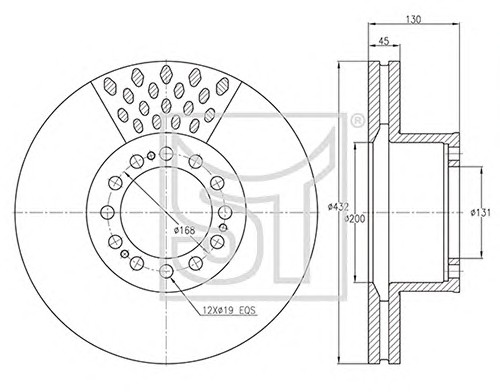

MAN Brake Disc 81.50803.0038

Location:Front wheel Total height:130 mm Outer diameter:432 mm Center hole diameter:131 mm Pitch diameter:168 mm Disc thickness:45 mm Minimum disc thickness:35 mm Solid or ventilated disk:Ventilated disk Weight:35 kg

AUDI/SEAT/VOLKSWAGEN Brake Disc 811 615 301

Location:Rear wheel Total height:38.5 mm Outer diameter:239 mm Center hole diameter:65 mm Pitch diameter:100 mm Disc thickness:10 mm Minimum disc thickness:8 mm Number of holes:4 Solid or ventilated disk:Solid disk Weight:3 kg
