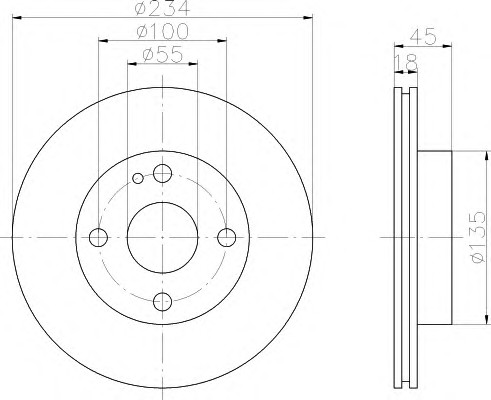

MAZDA Brake Disc NA01-33-25X

Location:Front wheel Total height:45 mm Outer diameter:235 mm Center hole diameter:55 mm Pitch diameter:100 mm Disc thickness:18 mm Minimum disc thickness:16 mm Number of holes:4 Solid or ventilated disk:Ventilated disk Weight:3.7 kg

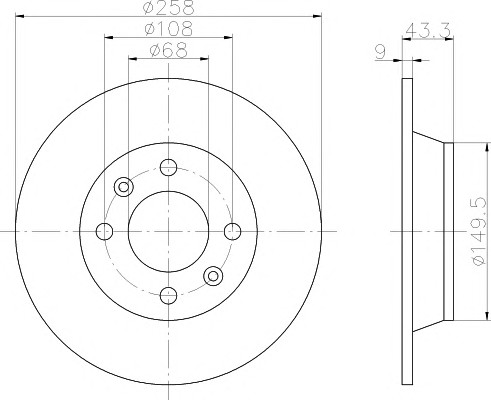

SAAB Brake Disc 89 70 717

Location:Rear wheel Total height:43.5 mm Outer diameter:258 mm Center hole diameter:68 mm Pitch diameter:108 mm Disc thickness:9 mm Minimum disc thickness:7.5 mm Number of holes:4 Solid or ventilated disk:Solid disk Weight:3.1 kg

VOLVO Brake Disc 271 788

Location:Front wheel Total height:50.3 mm Outer diameter:280.3 mm Center hole diameter:68 mm Pitch diameter:108 mm Disc thickness:26 mm Minimum disc thickness:23 mm Number of holes:5 Solid or ventilated disk:Ventilated disk Weight:6.3 kg

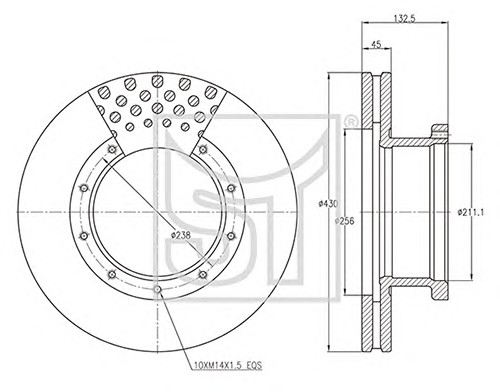

MERCEDES BENZ Brake Disc 942 421 12 12

Location:Front Axle, Rear Axle Total height:132 mm Outer diameter:430 mm Center hole diameter:211.1 mm Pitch diameter:238 mm Disc thickness:45 mm Minimum disc thickness:37 mm Number of holes:10 Solid or ventilated disk:Ventilated disk Weight:33.8 kg

VOLVO Brake Disc 270 736

Location:Rear wheel Total height:73.2 mm Outer diameter:281 mm Center hole diameter:68 mm Pitch diameter:108 mm Disc thickness:9.6 mm Minimum disc thickness:8.4 mm Number of holes:5 Solid or ventilated disk:Solid disk Weight:4.95 kg

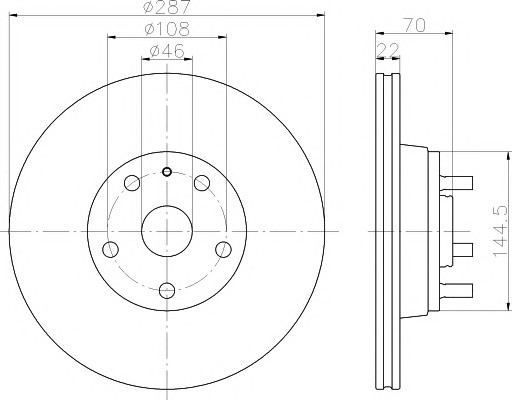

VOLVO Brake Disc 1330 835

Location:Front wheel Total height:70 mm Outer diameter:287 mm Center hole diameter:65 mm Pitch diameter:108 mm Disc thickness:22 mm Minimum disc thickness:20 mm Number of holes:5 Solid or ventilated disk:Ventilated disk

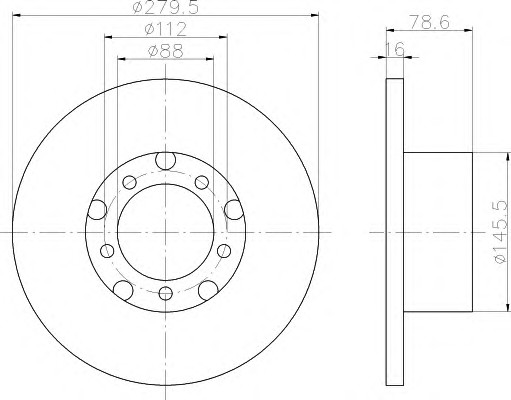

MERCEDES BENZ Brake Disc 601 420 00 72

Location:Front wheel Total height:78.6 mm Outer diameter:280 mm Center hole diameter:88 mm Pitch diameter:112 mm Disc thickness:16 mm Minimum disc thickness:13 mm Number of holes:5 Solid or ventilated disk:Solid disk Weight:7.04 kg

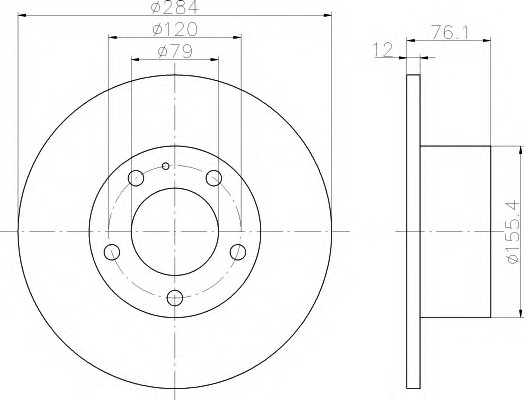

BMW Brake Disc 34 11 1 151 632

Location:Front wheel Total height:76 mm Outer diameter:284 mm Center hole diameter:79 mm Pitch diameter:120 mm Disc thickness:12 mm Minimum disc thickness:10.4 mm Number of holes:5 Solid or ventilated disk:Solid disk Weight:5.4 kg

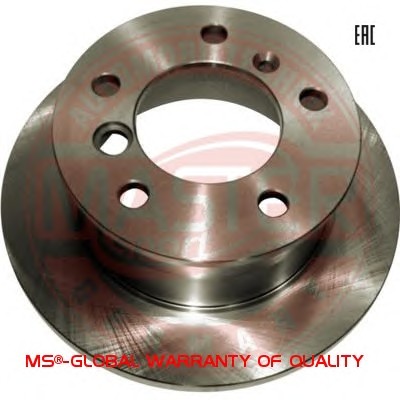

MERCEDES BENZ/VOLKSWAGEN Brake Disc 902 423 01 12

Location:Rear wheel Total height:96.7 mm Outer diameter:272 mm Center hole diameter:85 mm Pitch diameter:130 mm Disc thickness:16 mm Minimum disc thickness:14 mm Number of holes:5 Solid or ventilated disk:Solid disk Weight:7 kg

AUDI/SEAT/VOLKSWAGEN/VW (SVW) Brake Disc 321 615 301 C

Location:Front wheel Total height:39 mm Outer diameter:239 mm Center hole diameter:65 mm Pitch diameter:100 mm Disc thickness:20 mm Minimum disc thickness:18 mm Number of holes:4 Solid or ventilated disk:Ventilated disk Weight:3.8 kg

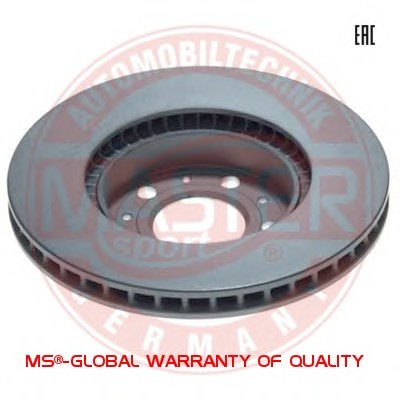

TOYOTA Brake Disc 43512-60050

Location:Front wheel Total height:58 mm Outer diameter:286 mm Center hole diameter:105 mm Pitch diameter:139.7 mm Disc thickness:25 mm Minimum disc thickness:23 mm Number of holes:6 Solid or ventilated disk:Ventilated disk Weight:7 kg

TOYOTA Brake Disc 43512-60040

Location:Front wheel Total height:48 mm Outer diameter:302 mm Center hole diameter:100 mm Pitch diameter:139.7 mm Disc thickness:20 mm Minimum disc thickness:19 mm Number of holes:6 Solid or ventilated disk:Ventilated disk Weight:6.6 kg

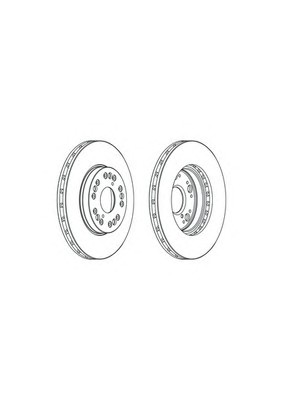

LEXUS Brake Disc 43512-50040

Location:Front wheel Total height:48 mm Outer diameter:275 mm Center hole diameter:60 mm Pitch diameter:114.3 mm Disc thickness:25 mm Minimum disc thickness:24 mm Number of holes:5 Solid or ventilated disk:Ventilated disk

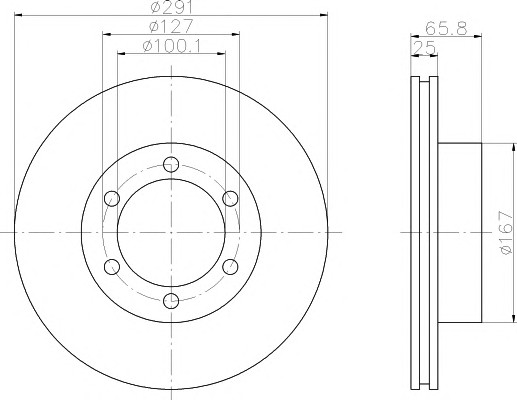

TOYOTA Brake Disc 43512-35200

Location:Front wheel Total height:65.8 mm Outer diameter:291 mm Center hole diameter:100 mm Pitch diameter:127 mm Disc thickness:25 mm Minimum disc thickness:23 mm Number of holes:6 Solid or ventilated disk:Ventilated disk Weight:7 kg

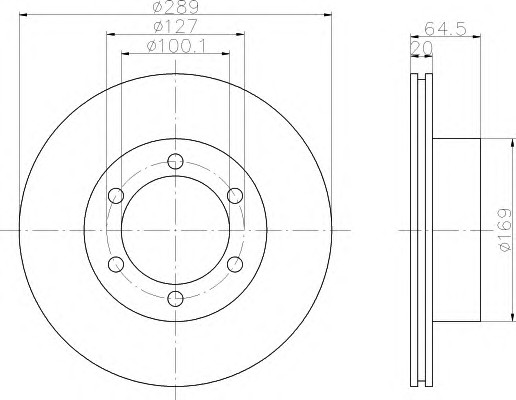

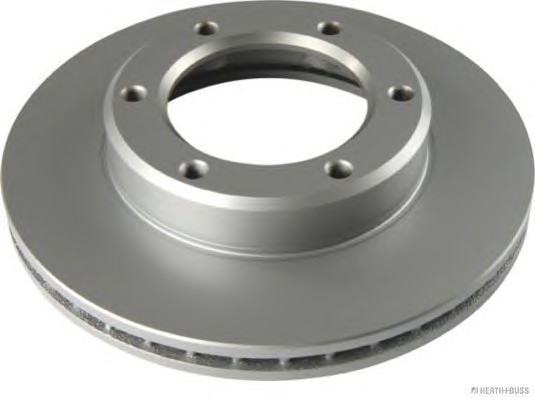

TOYOTA/VOLKSWAGEN/GREAT WALL Brake Disc 43512-35190

Location:Front wheel Total height:64.2 mm Outer diameter:289 mm Center hole diameter:100 mm Pitch diameter:127 mm Disc thickness:20 mm Minimum disc thickness:18 mm Number of holes:6 Solid or ventilated disk:Ventilated disk Weight:6.3 kg
