Product Center

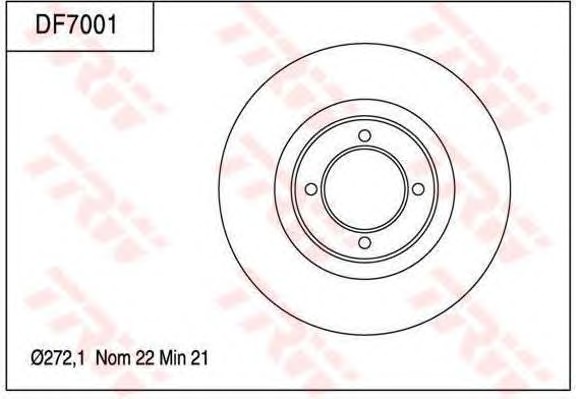

Brake Disc 43512-22100

Location:Front wheel Total height:40.1 mm Outer diameter:271.8 mm Center hole diameter:76.2 mm Pitch diameter:100 mm Disc thickness:22.4 mm Minimum disc thickness:21.1 mm Number of holes:4 Solid or ventilated disk:Ventilated disk Weight:5.6 kg

TOYOTA Brake Disc 43512-22080

Location:Front wheel Total height:40 mm Outer diameter:248 mm Center hole diameter:76 mm Pitch diameter:100 mm Disc thickness:22 mm Minimum disc thickness:21 mm Number of holes:4 Solid or ventilated disk:Ventilated disk Weight:5 kg

TOYOTA Brake Disc 43512-22060

Location:Front wheel Total height:28 mm Outer diameter:248 mm Center hole diameter:76 mm Pitch diameter:100 mm Disc thickness:22 mm Minimum disc thickness:21 mm Number of holes:4 Solid or ventilated disk:Ventilated disk Weight:4.7 kg

TOYOTA Brake Disc 43512-22051

Location:Front wheel Total height:28 mm Outer diameter:248 mm Center hole diameter:76 mm Pitch diameter:100 mm Disc thickness:18 mm Minimum disc thickness:17 mm Number of holes:4 Solid or ventilated disk:Ventilated disk Weight:3.9 kg

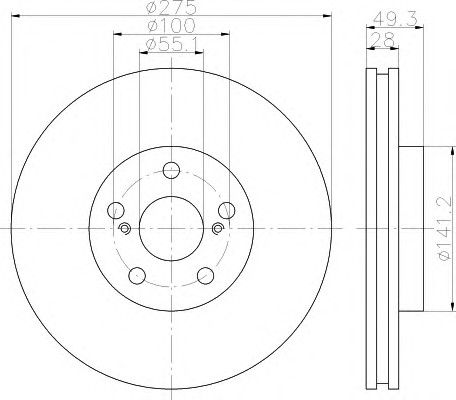

TOYOTA Brake Disc 43512-20630

Location:Front wheel Total height:49.2 mm Outer diameter:275 mm Center hole diameter:55 mm Pitch diameter:100 mm Disc thickness:28 mm Minimum disc thickness:26 mm Number of holes:5 Solid or ventilated disk:Ventilated disk Weight:6.4 kg

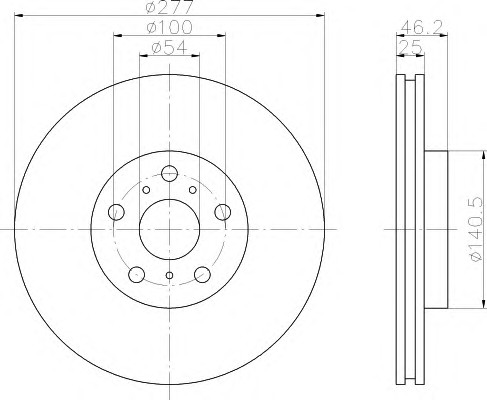

TOYOTA Brake Disc 43512-20390

Location:Front wheel Total height:46.2 mm Outer diameter:277 mm Center hole diameter:54 mm Pitch diameter:100 mm Disc thickness:25 mm Minimum disc thickness:23 mm Number of holes:5 Solid or ventilated disk:Ventilated disk Weight:6.9 kg

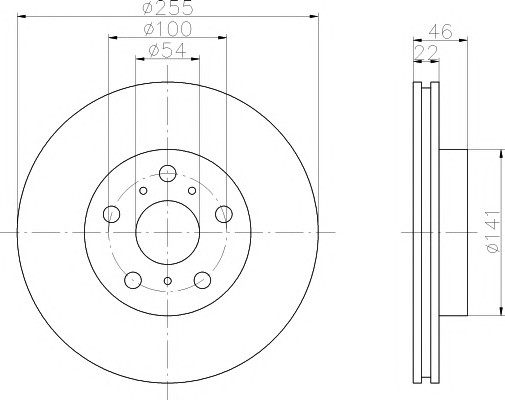

TOYOTA Brake Disc 43512-20360

Location:Front wheel Total height:46.5 mm Outer diameter:255 mm Center hole diameter:54 mm Pitch diameter:100 mm Disc thickness:22 mm Minimum disc thickness:20 mm Number of holes:5 Solid or ventilated disk:Ventilated disk Weight:4.9 kg

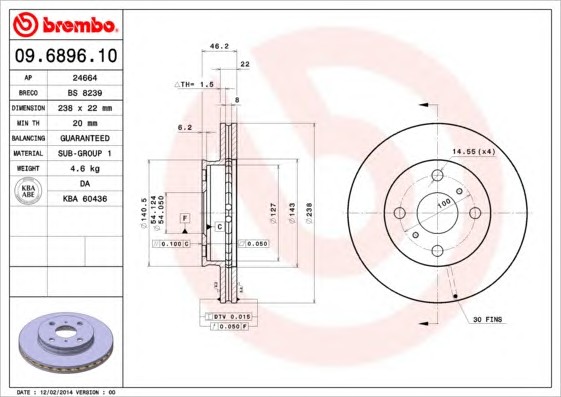

TOYOTA Brake Disc 43512-20330

Location:Front wheel Total height:46 mm Outer diameter:238 mm Center hole diameter:54 mm Pitch diameter:100 mm Disc thickness:22 mm Minimum disc thickness:20 mm Number of holes:4 Solid or ventilated disk:Ventilated disk Weight:4.6 kg

TOYOTA Brake Disc 43512-20120

Location:Front wheel Total height:47.8 mm Outer diameter:257.6 mm Center hole diameter:54.1 mm Pitch diameter:100 mm Disc thickness:22.4 mm Minimum disc thickness:21.1 mm Number of holes:5 Solid or ventilated disk:Ventilated disk Weight:5 kg

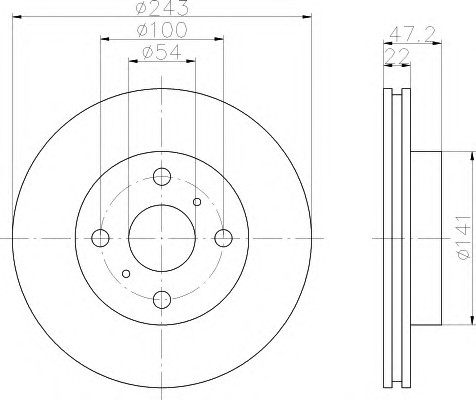

TOYOTA Brake Disc 43512-20110

Location:Front wheel Total height:47.3 mm Outer diameter:243 mm Center hole diameter:54 mm Pitch diameter:100 mm Disc thickness:22 mm Minimum disc thickness:21 mm Number of holes:4 Solid or ventilated disk:Ventilated disk

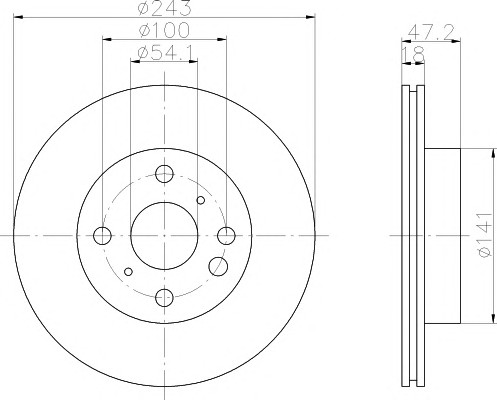

TOYOTA Brake Disc 43512-20080

Location:Front wheel Total height:47.2 mm Outer diameter:243 mm Center hole diameter:54 mm Pitch diameter:100 mm Disc thickness:18 mm Minimum disc thickness:17 mm Number of holes:4 Solid or ventilated disk:Ventilated disk Weight:4.2 kg

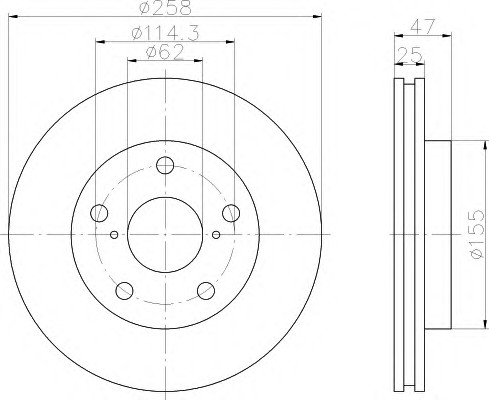

TOYOTA Brake Disc 43512-17040

Location:Front wheel Total height:47.5 mm Outer diameter:258 mm Center hole diameter:62 mm Pitch diameter:114.3 mm Disc thickness:25 mm Minimum disc thickness:24 mm Number of holes:5 Solid or ventilated disk:Ventilated disk Weight:5 kg

TOYOTA Brake Disc 43512-17010

Location:Front wheel Total height:47.6 mm Outer diameter:258 mm Pitch diameter:100 mm Disc thickness:22.1 mm Minimum disc thickness:21 mm Number of holes:4 Solid or ventilated disk:Ventilated disk

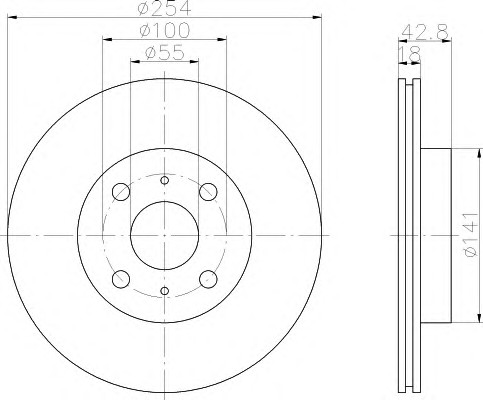

TOYOTA Brake Disc 43512-16080

Location:Front wheel Total height:43 mm Outer diameter:254 mm Center hole diameter:55 mm Pitch diameter:100 mm Disc thickness:18 mm Minimum disc thickness:16 mm Number of holes:4 Solid or ventilated disk:Ventilated disk Weight:4 kg

TOYOTA Brake Disc 43512-16070

Location:Front wheel Total height:43 mm Outer diameter:238 mm Center hole diameter:55 mm Pitch diameter:100 mm Disc thickness:18 mm Minimum disc thickness:17 mm Number of holes:4 Solid or ventilated disk:Ventilated disk Weight:3.9 kg
