SEAT/VOLKSWAGEN Brake Disc 6N0 615 301 C

Location:Front wheel Total height:34.5 mm Outer diameter:239 mm Center hole diameter:65 mm Pitch diameter:100 mm Disc thickness:18 mm Minimum disc thickness:16 mm Number of holes:4 Solid or ventilated disk:Ventilated disk Weight:3.6 kg

SEAT Brake Disc 6N0 615 601 B

Location:Rear wheel Total height:39.5 mm Outer diameter:232 mm Center hole diameter:65 mm Pitch diameter:100 mm Disc thickness:9 mm Minimum disc thickness:7 mm Number of holes:4 Solid or ventilated disk:Solid disk

SKODA/VOLKSWAGEN/SKODA (SVW ) Brake Disc 6Q0 615 301

Location:Front wheel Total height:35 mm Outer diameter:239 mm Center hole diameter:65 mm Pitch diameter:100 mm Disc thickness:18 mm Minimum disc thickness:16 mm Number of holes:5 Solid or ventilated disk:Ventilated disk Weight:3.6 kg

VOLKSWAGEN Brake Disc 701 615 301 A

Location:Front wheel Total height:64.5 mm Outer diameter:280 mm Center hole diameter:68.2 mm Pitch diameter:112 mm Disc thickness:24 mm Minimum disc thickness:20 mm Number of holes:5 Solid or ventilated disk:Ventilated disk Weight:6.85 kg

VOLKSWAGEN Brake Disc 701 615 301 B

Location:Front wheel Total height:64.5 mm Outer diameter:282 mm Center hole diameter:68.2 mm Pitch diameter:112 mm Disc thickness:18 mm Minimum disc thickness:15 mm Number of holes:5 Solid or ventilated disk:Solid disk Weight:7.18 kg

VOLKSWAGEN Brake Disc 701 615 301 F

Location:Front wheel Total height:55.2 mm Outer diameter:280 mm Center hole diameter:68.2 mm Pitch diameter:112 mm Disc thickness:24 mm Minimum disc thickness:20 mm Number of holes:5 Solid or ventilated disk:Ventilated disk Weight:6.7 kg

VOLKSWAGEN Brake Disc 701 615 301 G

Location:Front wheel Total height:55 mm Outer diameter:282 mm Center hole diameter:68.2 mm Pitch diameter:112 mm Disc thickness:18 mm Minimum disc thickness:15 mm Number of holes:5 Solid or ventilated disk:Solid disk Weight:7 kg

VOLKSWAGEN Brake Disc 701 615 301

Location:Front wheel Total height:64 mm Outer diameter:260 mm Center hole diameter:68 mm Pitch diameter:112 mm Disc thickness:16 mm Minimum disc thickness:13 mm Number of holes:5 Solid or ventilated disk:Solid disk Weight:5.5 kg

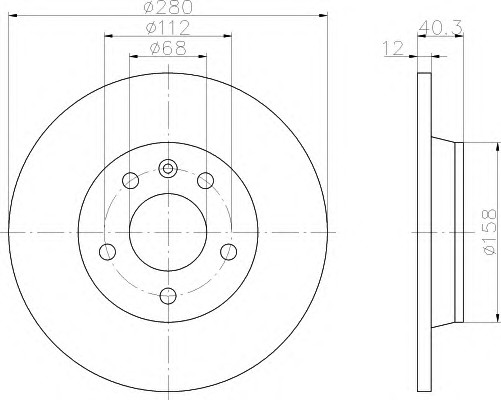

VOLKSWAGEN Brake Disc 701 615 601

Location:Rear wheel Total height:40.4 mm Outer diameter:280 mm Center hole diameter:68.2 mm Pitch diameter:112 mm Disc thickness:12 mm Minimum disc thickness:10 mm Number of holes:5 Solid or ventilated disk:Solid disk Weight:4.8 kg

RENAULT/NISSAN Brake Disc 77 00 756 572

Location:Front wheel Total height:41 mm Outer diameter:238 mm Center hole diameter:61 mm Pitch diameter:100 mm Disc thickness:20.1 mm Minimum disc thickness:17.7 mm Number of holes:4 Solid or ventilated disk:Ventilated disk Weight:3.9 kg

RENAULT Brake Disc 7700 716 947

Location:Front wheel Total height:41 mm Outer diameter:238 mm Center hole diameter:61 mm Pitch diameter:100 mm Disc thickness:8.2 mm Minimum disc thickness:7 mm Number of holes:4 Solid or ventilated disk:Solid disk Weight:2.7 kg

RENAULT/DACIA/NISSAN Brake Disc 7700 780 892

Location:Front wheel Total height:41 mm Outer diameter:259 mm Center hole diameter:61 mm Pitch diameter:100 mm Disc thickness:20.7 mm Minimum disc thickness:17.7 mm Number of holes:4 Solid or ventilated disk:Ventilated disk Weight:5 kg

RENAULT/NISSAN/DACIA/NISSAN (DONGFENG) Brake Disc 7701 207 795

Location:Front wheel Total height:44 mm Outer diameter:260 mm Center hole diameter:61 mm Pitch diameter:100 mm Disc thickness:22 mm Minimum disc thickness:19.8 mm Number of holes:4 Solid or ventilated disk:Ventilated disk Weight:5.4 kg

FORD/SEAT/VOLKSWAGEN Brake Disc 7D0 615 301 B

Location:Front wheel Total height:56 mm Outer diameter:300 mm Center hole diameter:68.2 mm Pitch diameter:112 mm Disc thickness:26 mm Minimum disc thickness:22 mm Number of holes:5 Solid or ventilated disk:Ventilated disk Weight:8.7 kg

FORD/SEAT/VOLKSWAGEN Brake Disc 7D0 615 601 C

Location:Rear wheel Total height:41 mm Outer diameter:294 mm Center hole diameter:68.2 mm Pitch diameter:112 mm Disc thickness:13.5 mm Minimum disc thickness:11.5 mm Number of holes:5 Solid or ventilated disk:Solid disk Weight:6.6 kg
